Mercedes A9016300640 - Кронштейн

414,408CDI,411CDI,413CDI,416CDI FROM IDENT-NR. R337627, 5337627, A901274 904.663

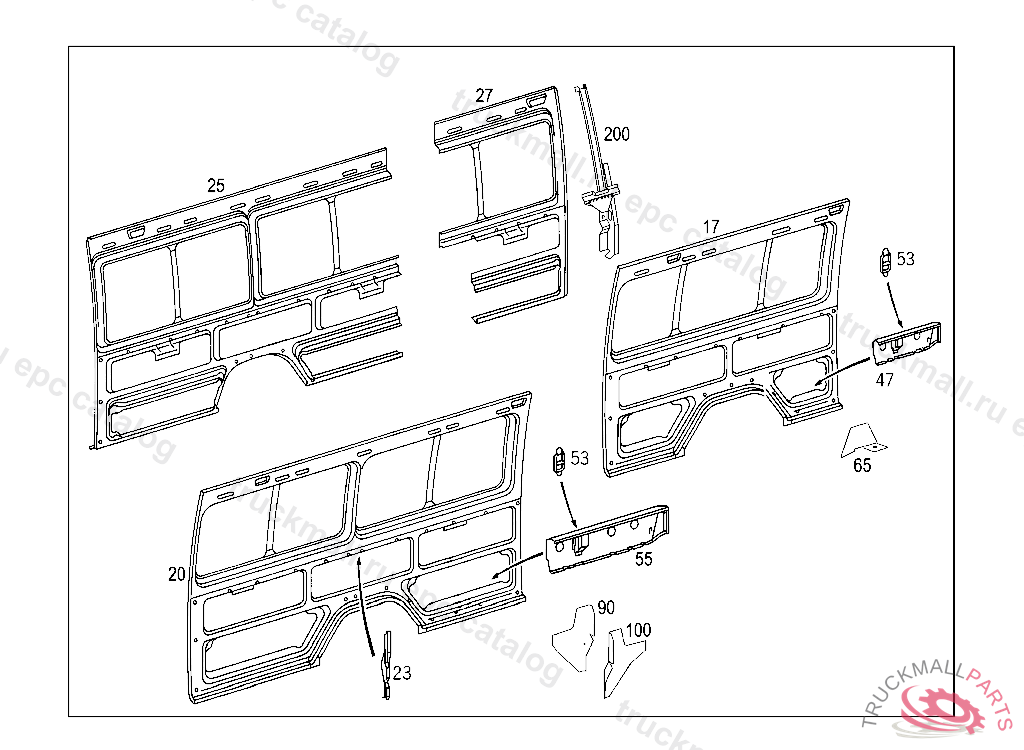

63 SIDE PANELS - 060 SIDE PANEL,RIGHT IL. 2

Поз.
Артикул
Описание
17
A6906361210
INNER PANEL SIDEWALL REAR, ONLY WITH LOAD COMPARTMENT SLIDING DOOR
20
A9016360810
INTERIOR PART REAR, USED WITHOUT SLIDING-TYPE LOADING DOOR
20
A9016361410
INTERIOR PART REAR, ONLY USED SLIDING-TYPE LOADING DOOR
23
A9046300114
PILLAR
25
A6906360910
INNER PANEL SIDEWALL , TO BE PROCURED FROM MBA ONLY
25
A6906360210
INTERIOR PART , TO BE PROCURED FROM MBA ONLY
27
A6906360310
INNER PANEL SIDEWALL , TO BE PROCURED FROM MBA ONLY
53
A9019870145
LOCKING CAP
55
A9016300640
SUPPORT RIGHT LOADING COMPARTMENT SLIDING DOOR
55
A6906300540
LONGITUDINAL MEMBER REAR RIGHT, TO BE PROCURED FROM MBA ONLY
65
A6906311216
REINFORCEMENT D-PILLAR, TO BE PROCURED FROM MBA ONLY
90
A6906310216
REINFORCEMENT REAR LEFT, TO BE PROCURED FROM MBA ONLY
100
A6906310316
REINFORCEMENT REAR LEFT, TO BE PROCURED FROM MBA ONLY
200
A6906303016
REINFORCEMENT D-PILLAR, TO BE PROCURED FROM MBA ONLY
