Mercedes A0009905304 - Болт М8х75

OM 924 LA - MTU 924.940

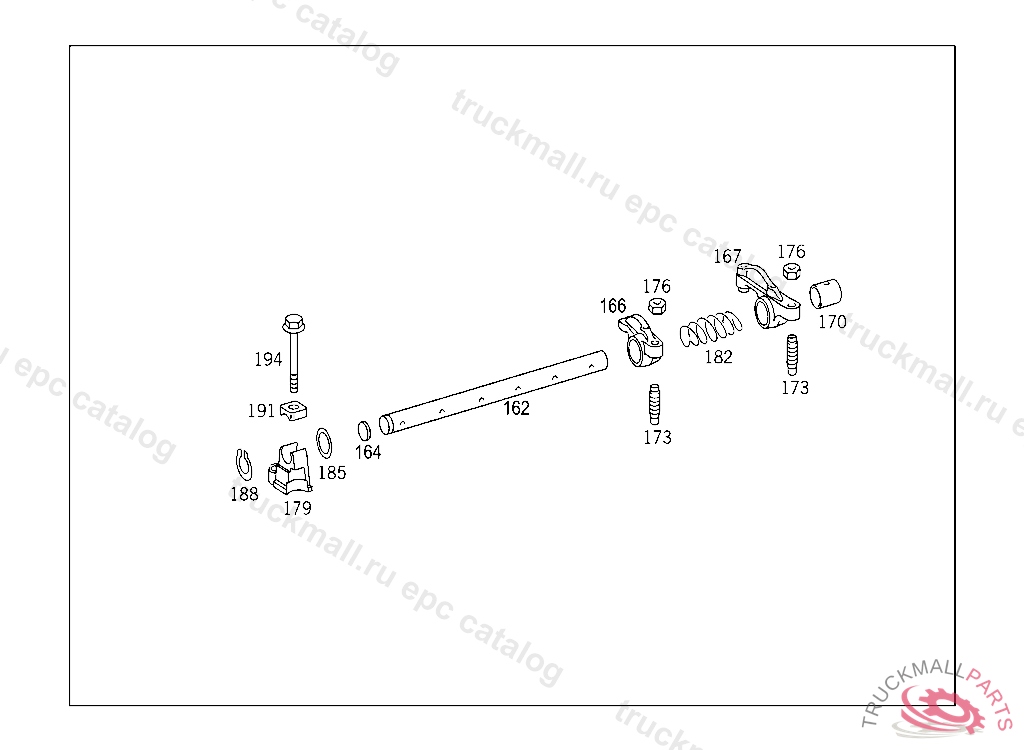

01 ENGINE HOUSING - 075 CYLINDER HEAD,VALVES,GASKET KIT IL. 3

Поз.
Артикул
Описание
162
A9040500231
ROCKER ARM SPINDLE
164
N000470012000
EXPANSION PLUG
166
A9060500833
ROCKER ARM INTAKE
167
A9060500334
ROCKER ARM EXHAUST
170
A9060550450
BUSHING
170
A9060550550
BUSHING EXHAUST
170
A9060550150
BUSHING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 417215, Replaced By: A9060550450
173
A9060550420
SET SCREW , Replaced By: A9060550021
176
A3269900151
NUT
179
A9060550410
ROCKER ARM BRACKET CENTRAL
179
A9060551110
ROCKER SUPPORT FRONT
179
A9060551210
ROCKER SUPPORT REAR
179
A9060550610
ROCKER ARM BRACKET FRONT, Replaced By: A9060551110
179
A9060550710
ROCKER ARM BRACKET REAR, Replaced By: A9060551210
182
A9069930801
SPRING
182
A9069931501
SPRING
185
A9069900140
WASHER
188
N000471022000
LOCK RING22X1.2,TO 001 431 71 14
191
A9060550192
CLAMPING PIECE ROCKER SHAFT TO CYLINDER HEAD
191
A9060550292
CLAMPING PIECE ROCKER SHAFT TO CYLINDER HEAD
194
A0009905304
SCREWTO 001 477 20 01,001 477 21 01
999
A9060550021
BALL SCREW PIN
