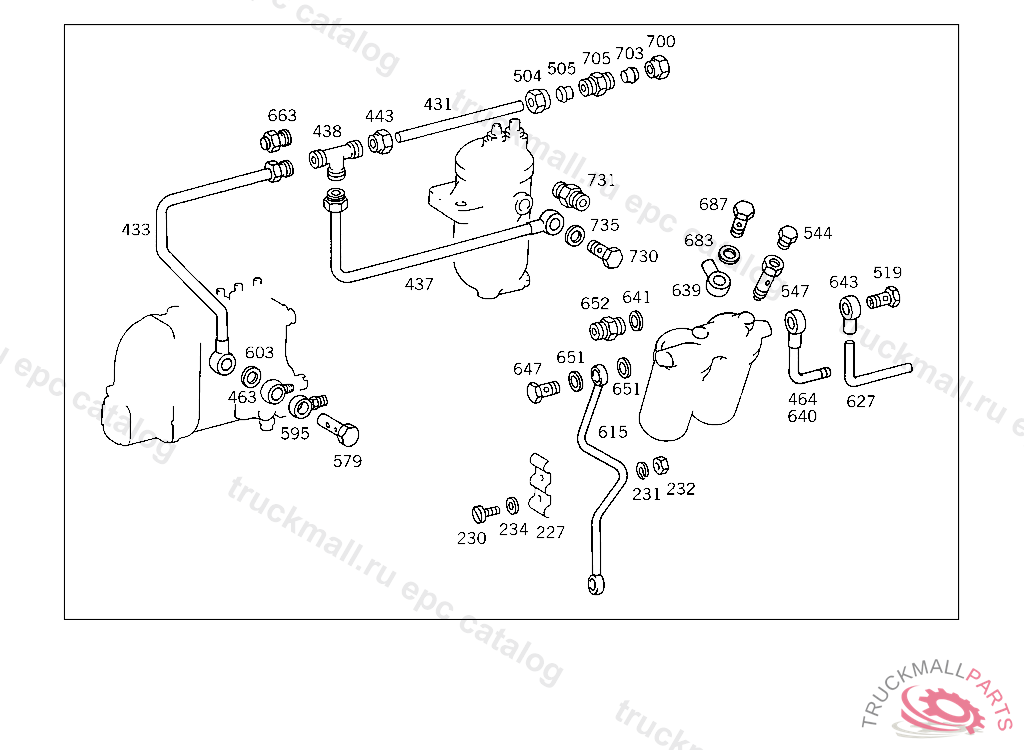

Поз.
Артикул
Описание
227
CLAMP LINE MOUNTING
230
SCREW PUMP TO BRACKET
230
SCREW PROTECTION PLATE TO BRACKET
231
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
231
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
232
NUT BALL PIVOT TO LEVER
232
NUT SPRING-LOADED PUSH ROD
234
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
431
HOSE
431
HOSE RETURN
431
HOSE FROM FUEL FEED PUMP TO FILTER
431
HOSE LEAK LINE TO CYLINDER HEAD
431
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
431
PLASTIC PIPE AERATION, ORDER BY THE METER
431
HOSE FROM FILTER TO INJECTION PUMP
431
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
433
LINE FUEL PUMP
433
LINE FUEL PUMP
437
LINE RETURN
437
LINE RETURN
438
T-FITTING STRAP TO SUPPORT
443
UNION NUT INJECTION PUMP BLEEDING
443
NUT. UNION NUT RETURN
463
BANJO UNION FROM PRESSURE REGULATOR TO ANTI-FREEZE DEVICE,6 900001-6 900006
463
BANJO UNION FUEL LINE TO FUEL TANK
463
BANJO UNION FUEL LINES AND BREATHING
463
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
463
BANJO UNION FEED
463
BANJO UNION , Replaced By: N000000000363
464
CONNECTOR
504
UNION NUT (LEAK LINE),AT CYLINDER HEAD
505
DOUBLE TAPER RING LEAK LINE TO CYLINDER HEAD
519
HOLLOW SCREW LINE MOUNTING
519
HOLLOW SCREW FUEL LINE TO FEED PUMP
544
SCREW PLUG FUEL TANK
544
SCREW PLUG , Replaced By: N007604014110
547
HOLLOW SCREW , Replaced By: N915036010109
547
HOLLOW SCREW HAND PUMP,K 169122
547
HOLLOW SCREW BREATHER LINE TO FUEL FILTER
547
HOLLOW SCREW FUEL LINE TO FEED PUMP
579
HOLLOW SCREW LINE MOUNTING
595
BANJO UNION FUEL-FILTER-TO-INJECTION-PUMP LINE
603
SEAL RING INJECTION PUMP
615
LINE FROM INJECTION PUMP TO FILTER
615
LINE FROM FILTER TO INJECTION PUMP
615
LINE FROM FUEL PUMP TO FILTER
615
LINE FROM FEED PUMP TO FILTER
615
LINE (DELIVERY LINE) FROM FITTING TO STEERING
615
LINE INJECTION PUMP BREATHING
615
LINE FROM FEED PUMP TO FILTER
615
LINE FROM FILTER TO INJECTION PUMP
615
LINE FROM INJECTION PUMP TO FILTER
615
LINE , Replaced By: A0089975482, +002N915052008000
615
LINE , Replaced By: A0089975482, +002N915052008000
615
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
615
LINE FROM INJECTION PUMP TO FILTER
615
LINE FROM FILTER TO INJECTION PUMP
627
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
627
HOSE
627
LINE (DELIVERY LINE) FROM FITTING TO STEERING
639
BANJO UNION FUEL-FILTER-TO-INJECTION-PUMP LINE
639
BANJO UNION FEED
639
BANJO UNION FUEL LINE TO FUEL TANK
639
BANJO UNION FUEL TANK-TO-FUEL-PUMP FUEL LINE
639
BANJO UNION CONNECTION OF FUEL LINES
639
BANJO UNION , Replaced By: N000000000363
640
BANJO UNION FROM FEED PUMP TO HEAT EXCHANGER
641
WASHER FROM FEED PUMP TO HEAT EXCHANGER
643
BANJO UNION FEED
643
BANJO UNION FUEL LINE TO FUEL TANK
643
BANJO UNION FUEL LINES AND BREATHING
643
BANJO UNION , Replaced By: N000000000363
647
HOLLOW SCREW , Replaced By: N915036010109
647
HOLLOW SCREW
647
HOLLOW SCREW FUEL LINE TO FEED PUMP
647
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
647
HOLLOW SCREW HAND PUMP,K 169122
651
SEAL RING FUEL LINE TO FEED PUMP
651
SEAL RING INJECTION PUMP
652
FITTING WATER SEPARATOR
663
FITTING OIL LINES
663
FITTING , Replaced By: N915008008402
683
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
683
SEAL RINGTO 000 553 03 05,000 553 18 05,
687
SCREW. BANJO BOLT AIR RESERVOIR,CONNECTION: "33",4 872664
687
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
700
UNION NUT (LEAK LINE),AT CYLINDER HEAD
700
NUT BRACKET TO PARTITION PANEL,1.9.89 B 065822 F 122353
703
DOUBLE TAPER RING LEAK LINE TO CYLINDER HEAD
705
FITTING , Replaced By: A0029975872
705
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
705
FITTING RETURN
730
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
730
HOLLOW SCREW LINE MOUNTING
730
HOLLOW SCREW FITTING LINE CONNECTION
730
HOLLOW SCREW CONNECTION: "12.2",4 697169
731
FITTING LINE CONNECTION
735
SEAL RING INJECTION PUMP
735
SEAL RING FUEL LINE TO FEED PUMP
735
SEAL RING
999
BANJO UNION , Replaced By: N000000000363
999
HOLLOW SCREW FUEL LINE TO FUEL TANK
999
HOLLOW SCREW INJECTION PUMP
999
HOLLOW SCREW
999
BANJO UNION FUEL LINE TO FUEL TANK
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE
999
SCREW PLUG , Replaced By: N007604014110
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING SCREW PLUG
999
SCREW , Replaced By: N304014008007
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
SPRING
999
LINE FROM FEED PUMP TO FILTER
999
BRACKET FUEL FILTER
999
BUSHING BRACKET TO CYLINDER HEAD
999
SUSPENSION EYE FOR TRANSPORT ONLY
999
SUSPENSION EYE
999
LINE , Replaced By: A0004292301, +001A0019901488, +001N915008008406
999
BRACKET FOR TRANSPORT ONLY
999
SUSPENSION EYE , Replaced By: A3522231141
999
SUSPENSION EYE
999
BRACKET FUEL FILTER, 314.918 251159 352.900-000-426100 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
BRACKET , 314.918 251158 352.900-000-426099, Replaced By: A3140900241, +001A3522231141
999
LINE , Replaced By: A0004292301, +001A0019901488, +001N915008008406
999
LINE , Replaced By: A0004292301, +001A0019901488, +001N915008008406
999
LINE FROM FILTER TO INJECTION PUMP
999
LINE FROM FUEL LINE TO T-FITTING
999
FITTING HAND PUMP TO FUEL FILTER
999
LOOM TIE , Replaced By: A0019978490
999
FITTING , Replaced By: N915058004000
999
FILTER FUEL FILTER
999
FILTER
999
FILTER FUEL FILTER
999
FILTER FUEL
999
SCREW CONNECTION , Replaced By: N915060008000
999
BANJO UNION , Replaced By: N915052008001
999
HOUSING
999
FILTER , WITH INCH THREAD R 3/8", Replaced By: A0000900152
999
FILTER , WITH METRIC THREAD 16 X 1.5, Replaced By: A0000929301
999
FILTERTO 000 092 78 01, WITH METRIC THREAD 16 X 1.5
999
FILTER , Replaced By: A0010920201
999
FILTER HEAD
999
FILTER ELEMENT
999
FILTER HEADTO 000 092 69 01
999
COVERTO 001 092 72 01
999
VALVE , Replaced By: A0000740515
