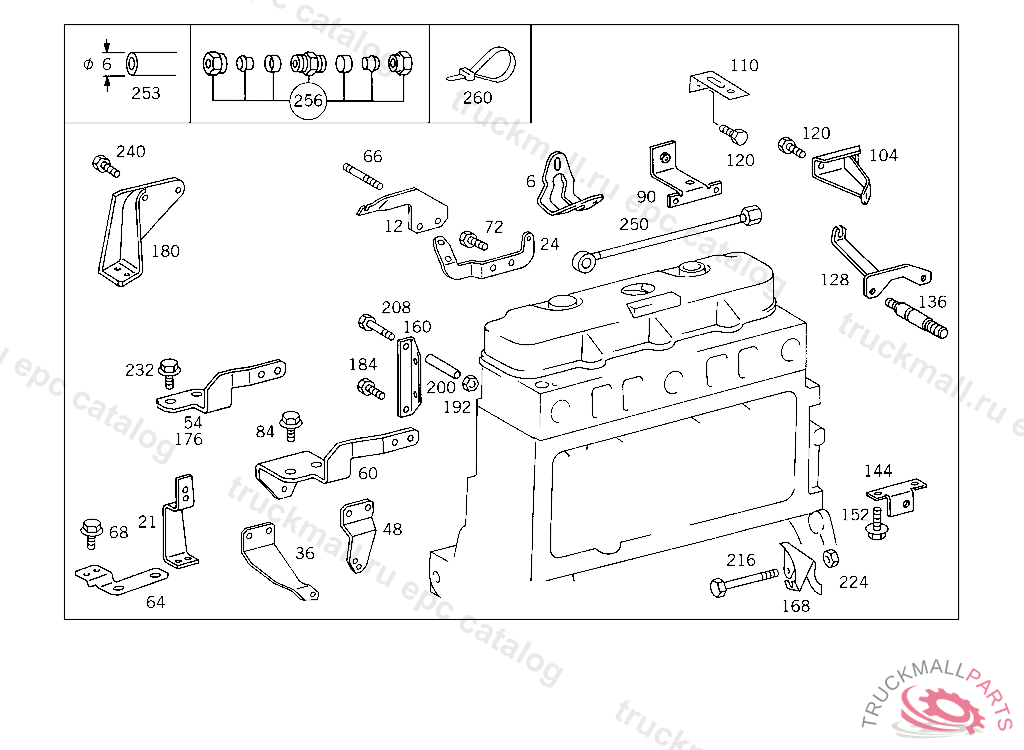

Поз.
Артикул
Описание
6
BRACKET STARTER PUSH BUTTON
6
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 077120, Replaced By: A3661590240
12
BRACKET CLAMPED UNDER FUEL FILTER
21
BRACKET HYDRAULIC LINE, UP TO ENGINE 036635,FROM ENGINE,SEE STANDARD MICROFICHE
24
BRACKET MANUAL PUMP
24
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3640910295
36
BRACKET RIGHT SUPPORTING ARM
48
BRACKET RIGHT SUPPORTING ARM, SIMPLE PART-PLEASE HAVE SHOP MADE
54
BRACKET LEFT
60
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3662053940, +001A6742410340
60
BRACKET RIGHT SUPPORTING ARM
64
BRACKET RIGHT SUPPORTING ARM
64
BRACKET , Replaced By: A3662002940
66
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
68
SCREW ALTERNATOR SUPPORT TO CYLINDER CRANKCASE
72
SCREW BRACKET TO FRAME SIDE MEMBER
72
SCREWM 10X20
72
SCREW , Replaced By: N910105010017
72
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
72
SCREW PLATE TO FRAME M 10X45
72
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
84
SCREW SUPPORT TO FRAME
90
BRACKET
104
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
110
BRACKET , Replaced By: A3184280240
120
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
128
BRACKET
136
STUD , Replaced By: A0009904805
144
BRACKET
152
COMBINATION BOLT BRACKET AND OIL PAN TO CYLINDER CRANKCASE
160
BRACKET AIR INTAKE PIPE TO CYLINDER CRANKCASE
168
BRACKET IDLING ADJUSTMENT
168
BRACKET IDLING ADJUSTMENT
176
BRACKET LEFT
176
BRACKET RIGHT
180
BRACKET
180
BRACKET SOLENOID VALVE
180
BRACKET SOLENOID VALVE
184
SCREWM 10X20
192
NUT
200
SPACER TUBE AIR INTAKE PIPE TO CYLINDER CRANKCASE
208
HEXAGON HEAD BOLT. SCREW CLAMPING BOLT TO ALTERNATOR M 12X50
216
SCREW CLAMP ON BRACKET
224
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
232
SCREW ALTERNATOR SUPPORT TO CYLINDER CRANKCASE
240
SCREW PIPE ELBOW TO BRACKET M 10X50
240
SCREWM 10X20
240
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
240
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
240
HEXAGON HEAD BOLT END COVER TO HOUSING M6X12
240
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
240
SCREW , Replaced By: N910105010017
240
SCREW COVER PLATE TO COVER PLATE M 6 X 10
250
LINE SOLENOID FUEL VALVE, UP TO ENGINE 286920 YEAR OF MANUFACTURE 1993
253
PLASTIC PIPE RISING PIPE 4X6 MM
253
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
256
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
260
LOOM TIE LINE MOUNTING 280 MM
260
LOOM TIE , Replaced By: A0019978390
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET IDLING ADJUSTMENT
999
BRACKET COMPRESSED AIR ELBOW
999
SUSPENSION EYE
999
BRACKET BRACKET TO OIL PAN
999
BRACKET OIL DIPSTICK
999
SCREW , Replaced By: N308676012012
999
WASHER
999
WASHER , Replaced By: N007349013005
999
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW STOP TO BATTERY CASE
