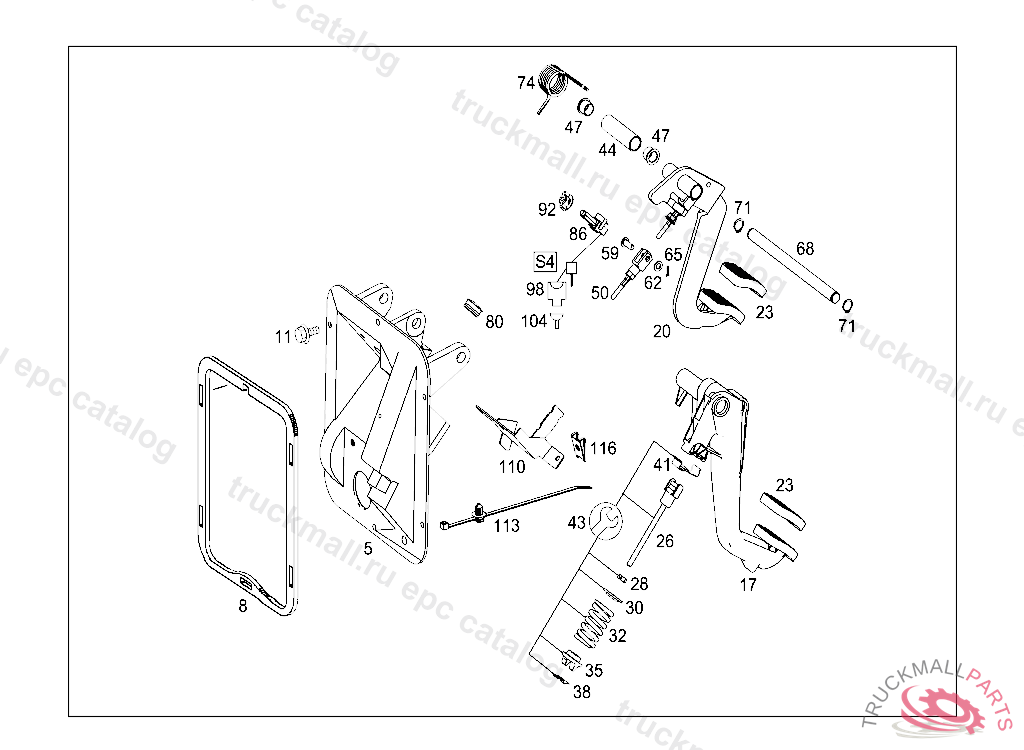

Поз.
Артикул
Описание
5
BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL
8
GASKET MOUNTING FRAME,028482, Replaced By: A9735460486, +001A9735400123, +001A9735460364, +004A9735460586
8
GASKET MOUNTING FRAME
11
SCREW BEARING BRACKET TO FIRE WALL
17
PEDAL CLUTCH
20
PEDAL BRAKE
23
PAD BRAKE PEDAL
26
ROD
28
NUT
30
SPRING RETAINER TOP
32
SPRING (DEAD CENTER SPRING) 37 MM
35
SPRING RETAINER SPRING TO PUSH ROD
38
INSULATOR BOTTOM
41
INSULATOR ROD TO CLUTCH PEDAL
43
REPAIR KIT DEAD CENTER SPRING
44
SPACER TUBE BRAKE PEDAL TO BEARING BRACKET
47
BUSHING BRAKE PEDAL
50
ROD PISTON ROD AND PUSH ROD
59
PIN ROD TO BRAKE PEDAL
62
WASHER BRACKET TO CROSS MEMBER
65
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
65
COTTER PIN LEVER TO ROD
68
PIN CLUTCH AND BRAKE PEDALS TO BEARING BRACKET
71
LOCK STOP TO BEARING BRACKET
74
SPRING BRAKE PEDAL RESET
80
PLUG TO PLUG THE BORES
80
PLUG TO PLUG THE BORES
86
SWITCH STOP LIGHT SWITCH
92
TERMINAL STOP LIGHT SWITCH
98
PIN BUSHING HOUSING UNIPOLAR
104
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
104
SHACKLE. PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 0.5-1.0 MM2
110
BRACKET STEERING COLUMN PANELLING
110
BRACKET STEERING COLUMN PANELLING, Replaced By: A9496830714
113
CABLE STRAP202X4.8MM
116
LOCK AIR BAFFLE TO AIR DUCT
999
FRONT FRAME CABLE INLET
999
COVER CABLE INLET
999
GASKET COVER
