Mercedes A9563100171 - KNOTENBLECH

18.. L 4X2/3900 956.003

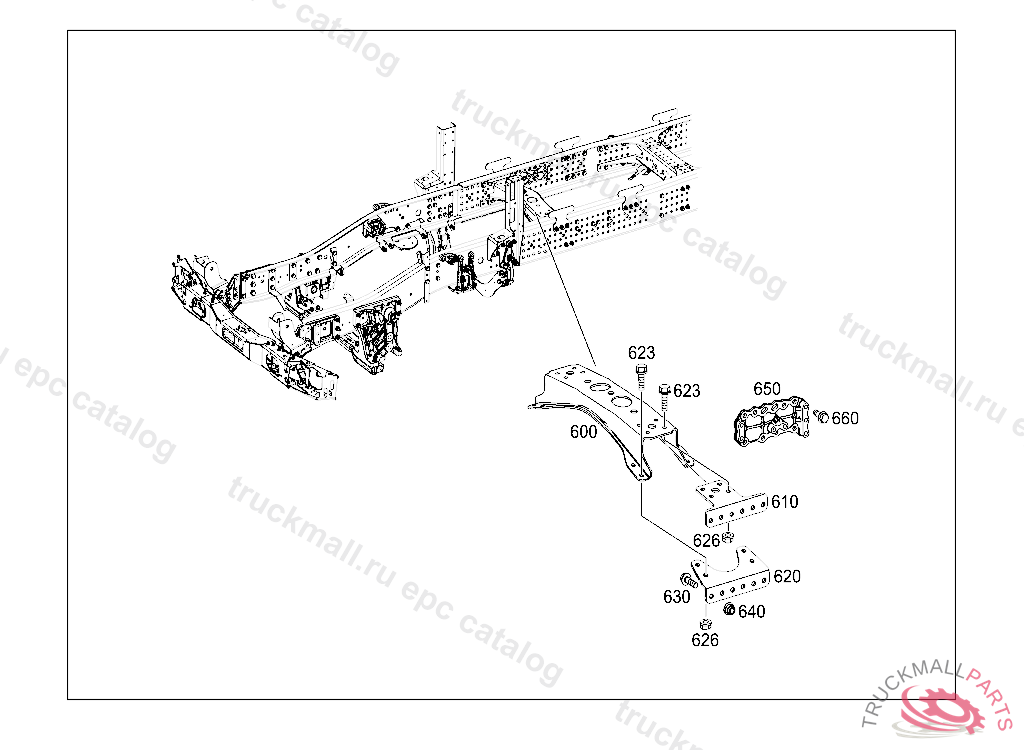

31 FRAME - 150 FRONT FRAME AREA IL. 4

Поз.
Артикул
Описание
600
A9603120701
610
A9563100071
620
A9563100171
623
N000000005518
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
623
N910105014005
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
626
A0029907550
630
N000000005518
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
630
N000000005542
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
640
A0029907650
HEXAGON NUT W COLLAR FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
650
A9562420123
650
A9562420223
660
N000000005535
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
