Mercedes A9563100171 - KNOTENBLECH

26.. L 6X2/4 956.033

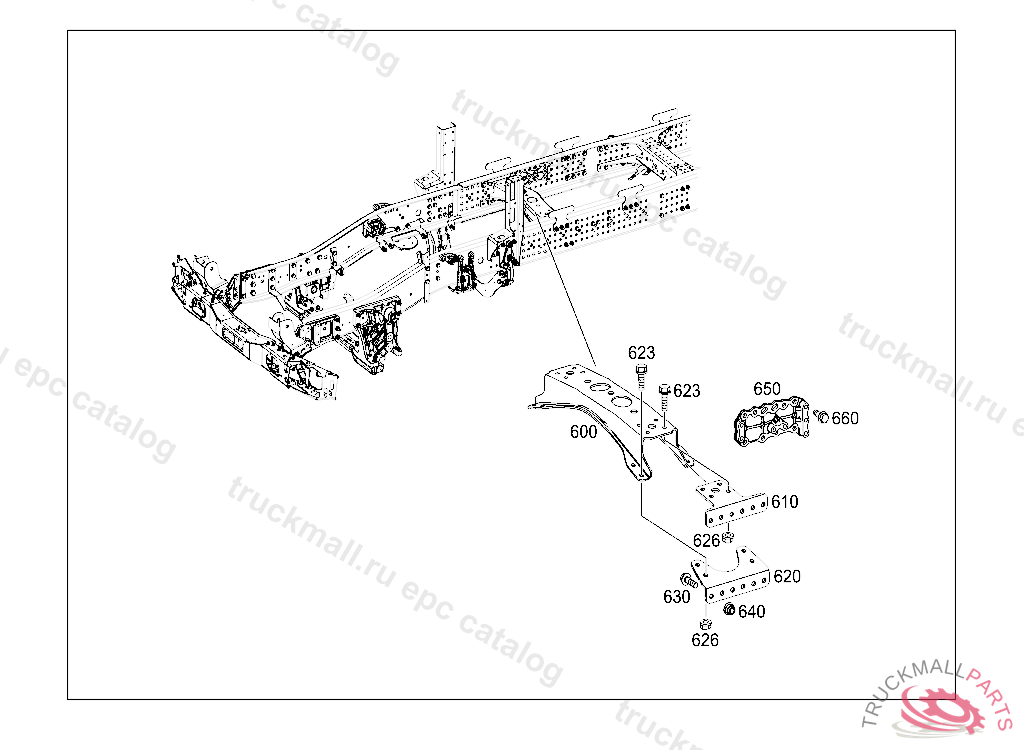

31 FRAME - 150 FRONT FRAME AREA IL. 4

Поз.
Артикул
Описание
600
A9603120701
610
A9563100071
620
A9563100171
623
N910105014005
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
623
N000000005518
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
626
A0029907550
630
N000000005518
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
630
N000000005542
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
640
A0029907650
HEXAGON NUT W COLLAR FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
650
A9562420223
650
A9562420123
660
N000000005535
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
