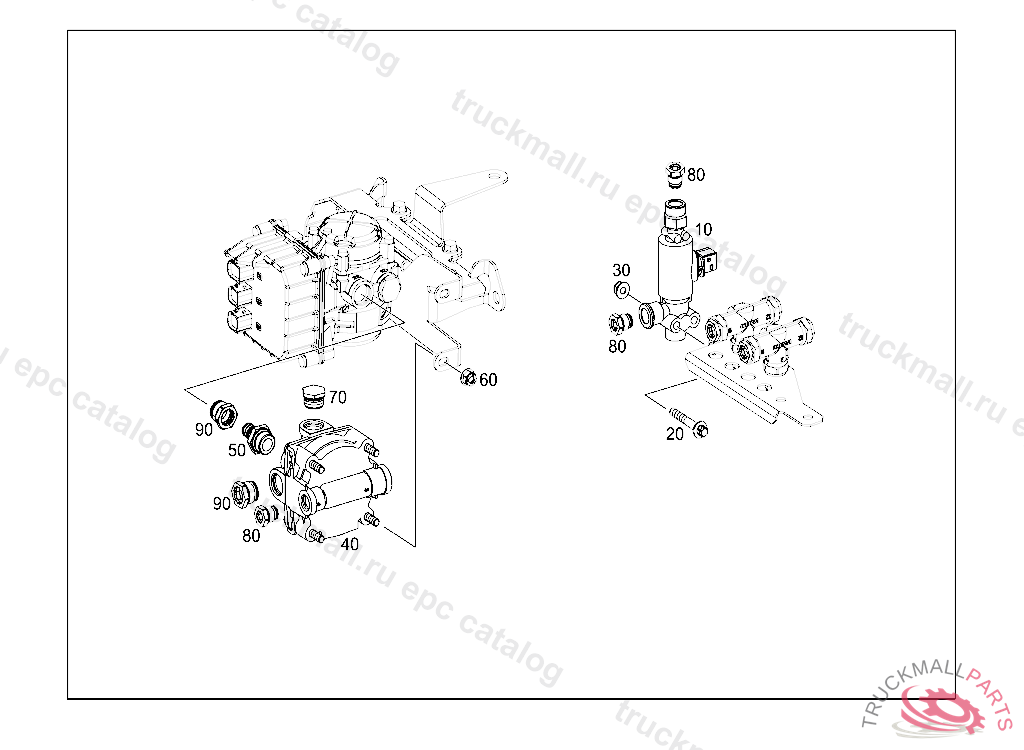

26.. L 6X2/4 - 956.033 - 42 BRAKES
Поз.
Артикул
Описание
10
3-2-WAY PNEUMATIC VALVE 3/2-WAY VALVE ADBLUE
20
SCREW 3/2-WAY VALVE TO BRACKET
30
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
40
50
SCREW-IN FITTING. FITTINGM22X1.5
60
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
70
SCREW PLUG AIR RESERVOIR
80
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
90
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
