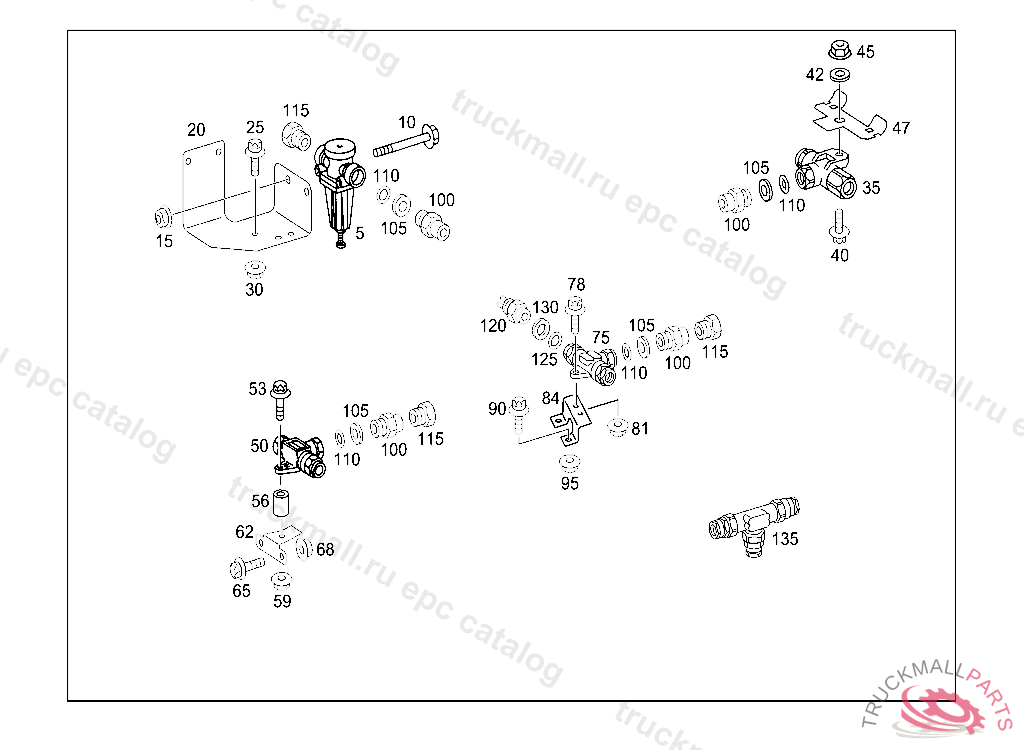

Поз.
Артикул
Описание
5
VALVE (PRESSURE LIMIT VALVE)
10
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
15
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
35
SHUTTLE VALVE. VALVE (SHUTTLE VALVE)
40
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
40
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
42
WASHER BRACKET TO CAB REAR PANEL
45
NUT BRACKET TO SIDE MEMBER M12X1.5
45
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
45
NUT
47
BRACKET SHUTTLE VALVE
50
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
50
SHUTTLE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0044292444
53
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
59
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
62
BRACKET SHUTTLE VALVE
65
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
68
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
75
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
78
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
78
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
81
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
84
BRACKET SHUTTLE VALVE, NOT CARRIED AS A SPARE PART
90
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
95
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
100
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
105
THRUST RING CHECK VALVE TO AIR RESERVOIR
110
O-RING CHECK VALVE TO AIR RESERVOIR
115
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
115
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
115
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
120
SWITCH PRESSURE SWITCH 2.5BAR
125
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
130
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
135
VALVE (SHUT-OFF VALVE)
