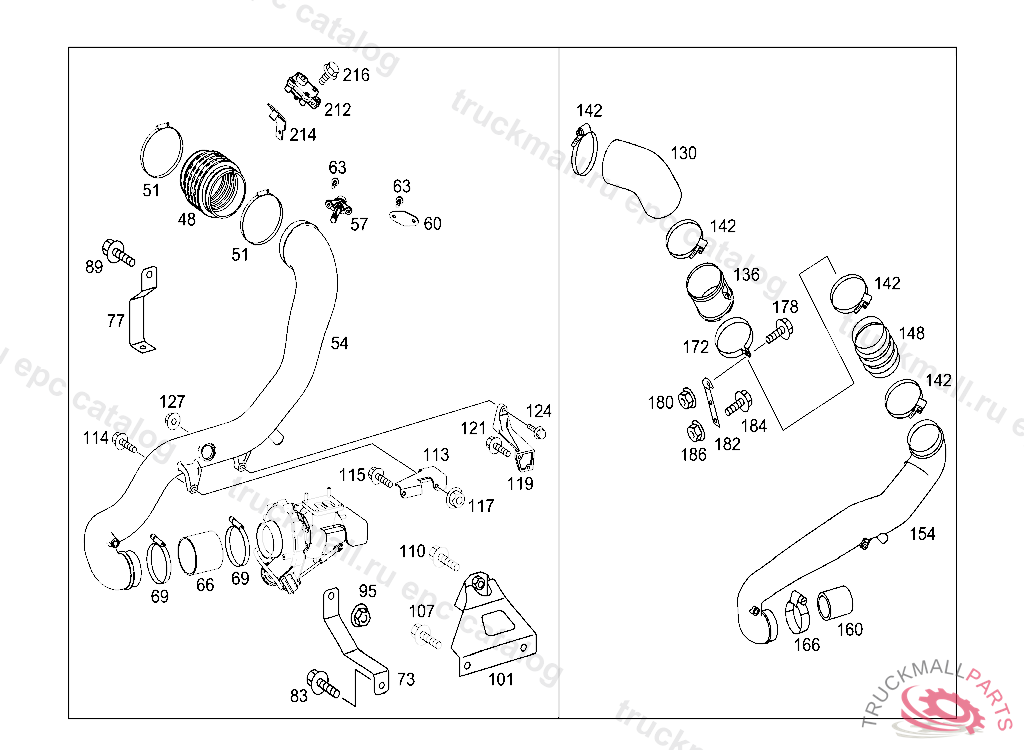

Поз.
Артикул
Описание
48
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
51
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
54
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE
54
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE,V 214287
54
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE
57
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR
57
TEMPERATURE SENSOR. SENDER UNIT MOISTURE TEMPERATURE SENSOR, Replaced By: A0071530128
57
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR, Replaced By: A0071531128
60
COVERING MOISTURE TEMPERATURE SENSOR
63
HEXAGON HEAD BOLT COVERING TO CAB
66
HOSE AIR INTAKE PIPE TO ENGINE
69
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
101
BRACKET AIR INTAKE PIPE
101
BRACKET AIR INTAKE PIPE,V 207570V 214286
107
SCREW BRACKET TO SIDE MEMBER M8X20
110
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
110
SCREWM 10X20
113
BRACKET AIR INTAKE PIPE,V 214287
113
BRACKET , Replaced By: A9575202241
114
SCREW BRACKET TO SIDE MEMBER M10X35
115
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
117
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
119
BRACKET AIR INTAKE PIPE,V 214287
121
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
121
SCREW BRACKET TO SIDE MEMBER M8X20
124
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION
127
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
130
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
136
CENTRAL PART FROM AIR CLEANER TO AIR INTAKE PIPE
142
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
148
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
154
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE
160
HOSE AIR INTAKE PIPE TO ENGINE
166
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
182
BRACKET AIR INTAKE PIPE
184
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
186
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
212
SENDER UNIT MAINTENANCE INDICATION
214
BRACKET SENDER UNIT
216
SCREW. HEXAGON HEAD BOLT SENDER UNIT TO BRACKET M5X25,V 214287
999
COVER PLATE AIR CLEANER
