Mercedes A0149972545 - КОЛЬЦО

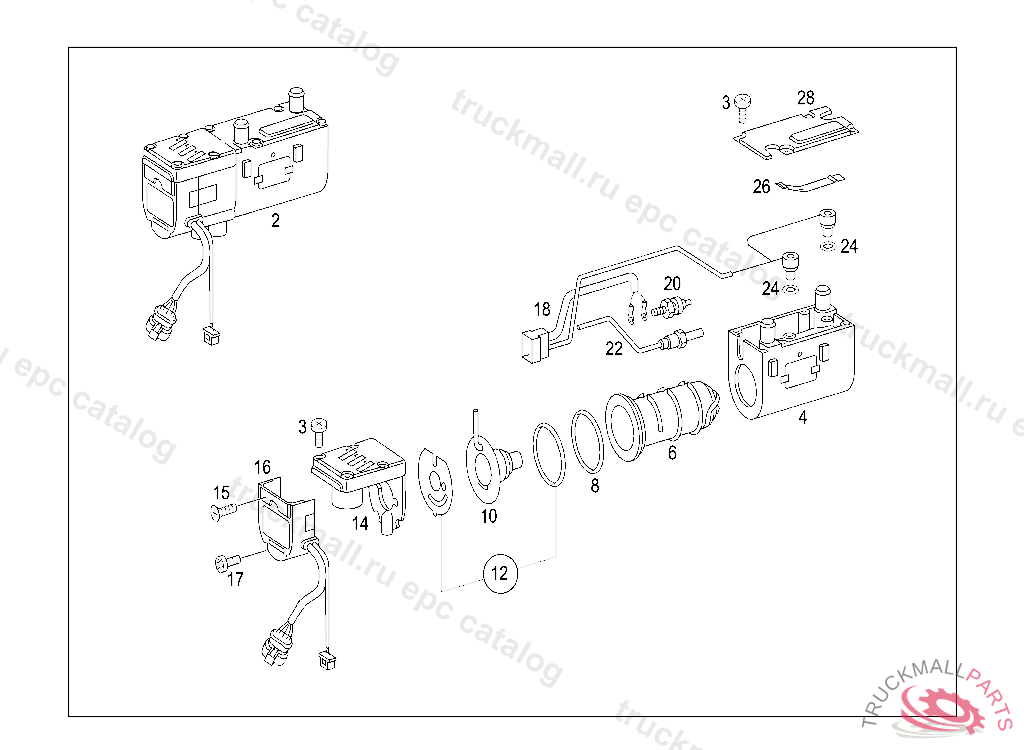

1823LS - 1833LS, 4X2 957.582

Поз.
Артикул
Описание
2
A0078301461
HEATER HOT-WATER HEATING D5WSC, FOR COMPONENT PARTS SEE SPARE PARTS LIST
2
A0028309761
3
N007985005014
4
A0018300903
HOUSING
6
A0038357101
HEAT EXCHANGER
6
A0038352701
HEAT EXCHANGER , Replaced By: A0038357101
8
A0249972748
SEAL RING
8
A0149972545
O-RING
10
A0008310385
PIPE LINE
12
A0018354298
SEAL PARTS KIT
12
A0008312698
SEAL
14
A0028301008
15
N000965005021
16
A0004466229
17
N000000001181
SCREW MOUNTING OF INSTRUMENT PANEL
18
A0008309072
TEMPERATURE SENSOR HEAT EXCHANGER TEMPERATURE SENSOR
20
A0008308972
TEMPERATURE SENSOR (FEELER),FLAME CONTROL
22
A0008353026
HEATER PLUG ,K 291257
24
A0149972645
O-RING
24
A0249972648
SEAL RING , Replaced By: A0169974548
26
A0009936505
SPRING
28
A0008350056
COVERTO 638 835 12 01,13 01
