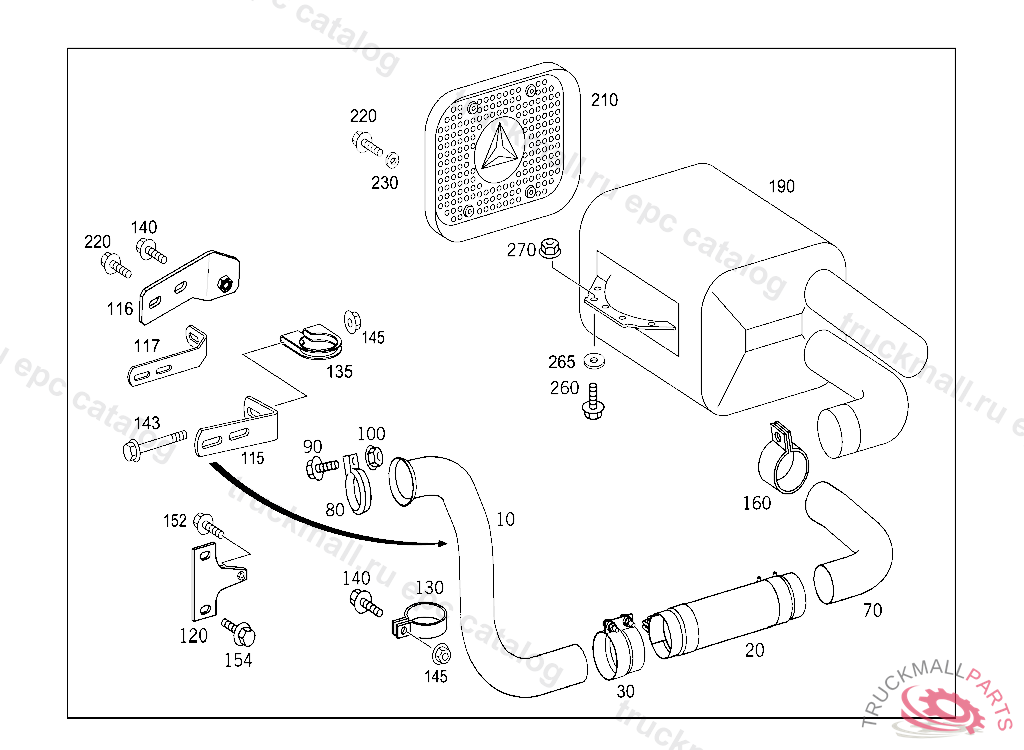

Поз.
Артикул
Описание
10
10
10
10
FRONT EXHAUST PIPE THROTTLE HOUSING,FRONT
10
20
FLEXIBLE METAL TUBE FRONT
20
WRAPPED TUBING CONNECTION OF EXHAUST PIPES WITH EACH OTHER
20
FLEXIBLE METAL TUBE CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST, Replaced By: A9704900565
20
FLEXIBLE METAL TUBE FRONT
80
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
80
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
90
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
90
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
100
NUT HORN TO BRACKET M8
115
BRACKET FRONT EXHAUST PIPE TO THROTTLE HOUSING
116
116
116
117
120
120
BRACKET FRONT EXHAUST PIPE TO THROTTLE HOUSING
130
CLAMP
130
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
130
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
130
CLAMP
135
CLAMP BRACKET TO EXHAUST PIPE
135
CLAMP REAR EXHAUST PIPE TO MUFFLER
135
CLAMP FRONT EXHAUST PIPE ON INTERMEDIATE PIPE 77 MM
140
SCREW CLAMP ON BRACKET
140
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
143
HEXAGON HEAD BOLT SOLENOID VALVE TO BRACKET M8X140
143
SCREWM8X120,D 250888 NOT USED
143
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
145
NUT HORN TO BRACKET M8
152
SCREW SHIFT LEVER TO BRACKET M8X30
152
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
154
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 16X25
154
SCREW EXHAUST PIPE,FRONT,ON FLYWHEEL HOUSING
190
190
190
EXHAUST MUFFLER STANDARD VERSION 90 MM
190
EXHAUST MUFFLER STANDARD VERSION 75 MM
210
220
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
220
SCREW BRACKET AND CLAMP M6X20
220
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
220
SCREW , Replaced By: N914146006102
220
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
220
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 16X25
230
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
260
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
260
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
270
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
