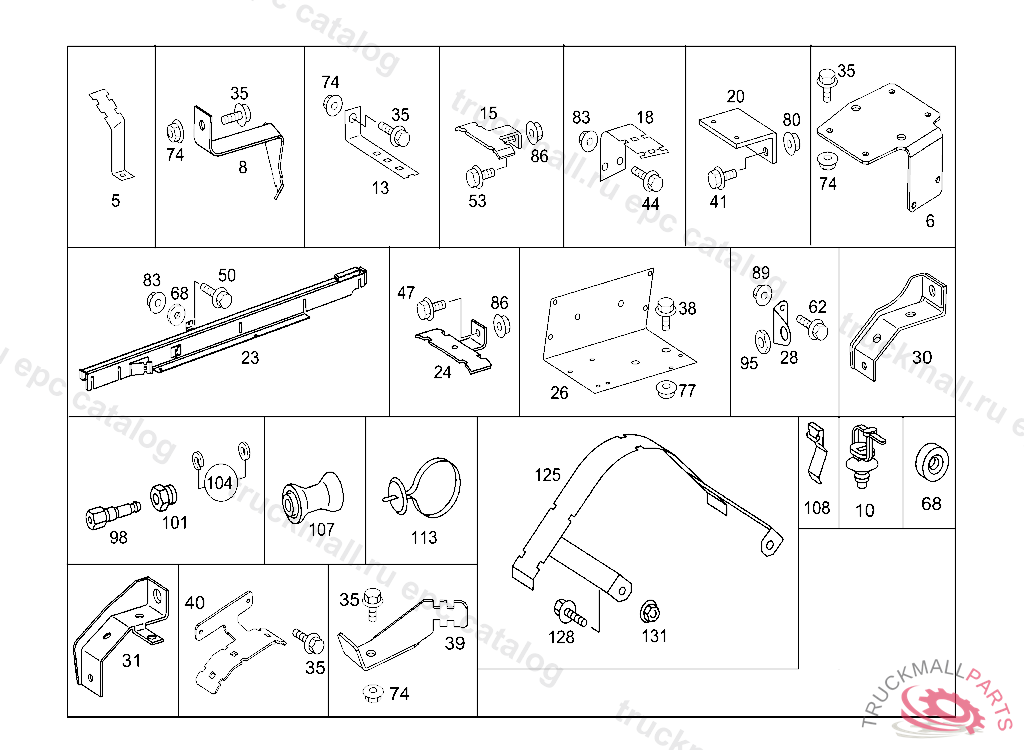

Поз.
Артикул
Описание
5
8
10
CABLE TIE. LOOM TIE150 X 3.6 MM
13
BRACKET LINE MOUNTING
15
BRACKET TO MOUNT FUEL LINES
18
18
20
23
24
28
30
BRACKET ATTACHMENT NOISE ENCAPSULATION
31
BRACKET ATTACHMENT NOISE ENCAPSULATION
35
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
35
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
35
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
35
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M12 X 1.5 X 40
35
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
35
SCREW , Replaced By: N914146006102
39
40
41
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
44
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
47
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
50
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
50
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
53
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
53
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
53
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
53
SCREW BRACKET TO SIDE MEMBER M10X35
62
SCREW , Replaced By: N910143008002
62
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
68
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
74
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
74
NUT BRACKET TO SIDE MEMBER M12X1.5
80
NUT BRACKET TO SIDE MEMBER M12X1.5
83
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
86
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
89
NUT HORN TO BRACKET M8
95
NUT ROD TO TORSION BAR
98
COUPLING FRONT AXLE II BRAKE HOSE
101
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
104
RS O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
104
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, Replaced By: A0229978145
107
WASHER ELECTRIC CABLE
108
113
LOOM TIE ELECTRIC CABLE MOUNTING
113
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
113
CABLE TIE. LOOM TIE378 X 7.6 MM
113
LOOM TIE LINE MOUNTING
113
CABLE TIE IONIC EXCHANGER 380X7.8MM
