Mercedes N910105008005 - БОЛТ М8

1725 - 1726 S /4X2/36 958.077

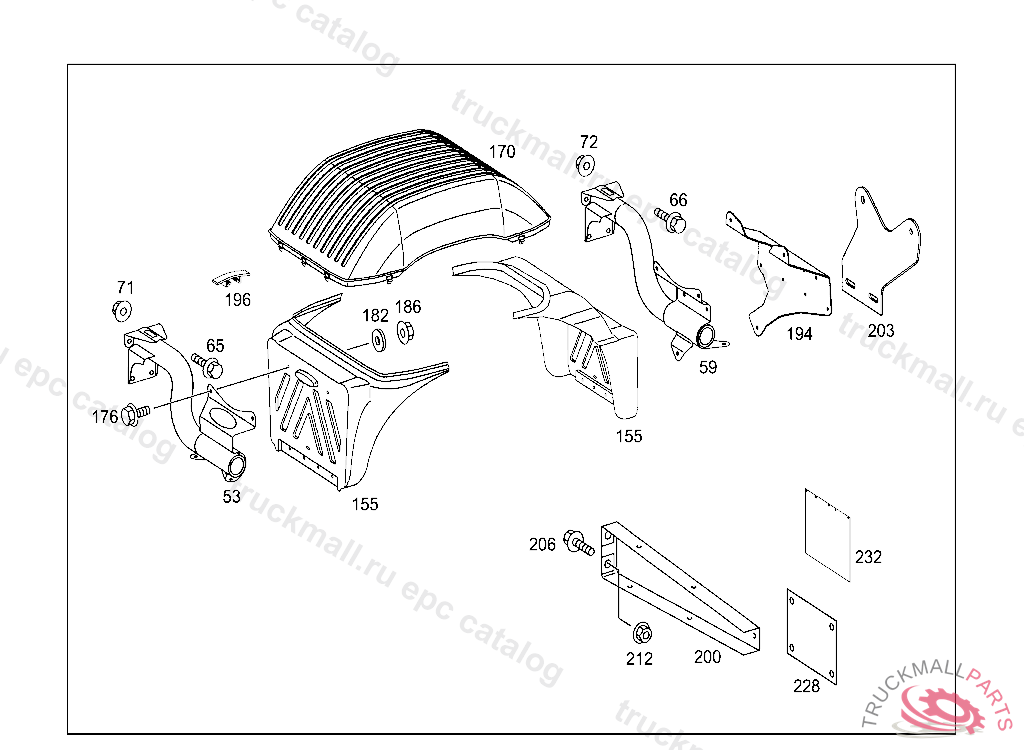

52 SHEET METAL,AIR INTAKE - 060 FENDER IL. 2

Поз.
Артикул
Описание
53
A9585203833
53
A9585203733
59
A9585204033
59
A9585203933
65
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
65
N910105014011
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
66
N910105014005
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
71
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
71
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
72
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
155
A9745221101
170
A9745220702
176
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
176
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
182
N009021008108
WASHER OVERFLOW VALVE
182
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
186
N913023008003
NUT HORN TO BRACKET M8
194
A9705831351
BRACKET TAIL LAMP
196
A0099881878
203
A9705251937
BRACKET TAIL LAMP
206
N910105008020
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
212
N913023008003
NUT HORN TO BRACKET M8
228
A6955257051
BRACKET LICENSE PLATE
