Поз.
Артикул
Описание

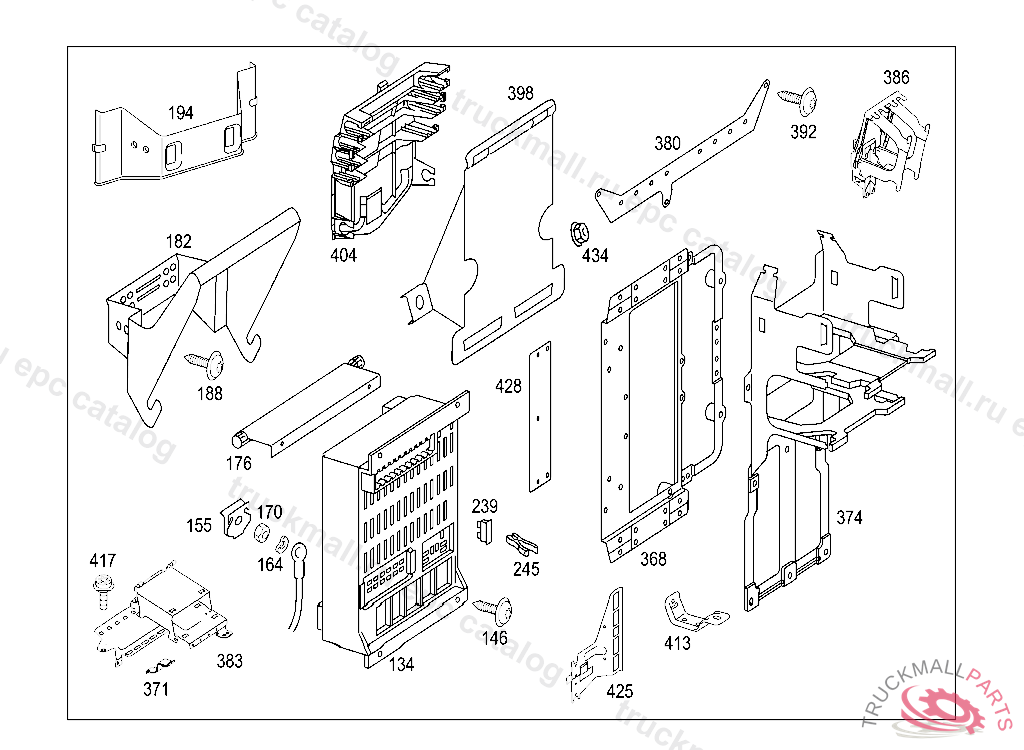

134
134
MODULE CENTRAL ELECTRICAL SYSTEM, Replaced By: A0015433615
134
MODULE CENTRAL ELECTRICAL SYSTEM
146
TAPPING SCREW CONTROL UNIT TO FIRE WALL
146
TAPPING SCREW. SHEET METAL SCREW REAR BUMPER
155
CLIP FASTENER MOUNTING, FOOTWELL COVER DRIVER SIDE 4,2
155
164
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
164
SPRING WASHER BRAKE SHOE WITH LINING
170
NUT
176
CONSOLE BASIC MODULE AT SUPPORT
182
CONSOLE BASIC MODULE
182
CONSOLE BASIC MODULE
188
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
188
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
188
SCREW. HEXALOBULAR BOLTM6X60
188
BOLT HIGH-PRESSURE TO ENGINE OIL SUMP M6X15, Replaced By: A0019844329
194
PLASTIC SECTION , Replaced By: A9709870223
194
239
FUSE20 A, MINOR REPAIRS, Replaced By: N000000004206
239
FUSE , Replaced By: A0025451034
239
FUSE10 A
245
PLIERS FUSE ELEMENT
368
CONSOLE ELECTRICAL COMPARTMENT LCM2
368
CONSOLE ELECTRICAL COMPARTMENT
371
374
BRACKET ELECTRICAL COMPARTMENT
380
BRACKET ELECTRICAL COMPARTMENT
383
BRACKET ELECTRICAL COMPARTMENT LCM2
383
BRACKET ELECTRICAL COMPARTMENT LCM2
386
BRACKET ELECTRONICS AT SUPPORT
392
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
392
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
392
SHEET METAL SCREW BRACKET TO FIRE WALL
398
BRACKET OPERATING UNIT
404
FRAME ELECTRICAL COMPARTMENT
413
CLAMP FOOTWELL PANELING FASTENING LCM2
417
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0009849729
417
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
425
BRACKET PLUG CONNECTION DOOR LCM2
425
BRACKET PLUG CONNECTION DOOR LCM2
428
BRACKET STAR POINT (ELECTROMAGNETIC FILTER)
434
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
434
NUT BRACKET TO FIRE WALL
