Главная
›
Mercedes
›
TRUCK
›
1933 LS / 4X2 / 36
›
958.208
›

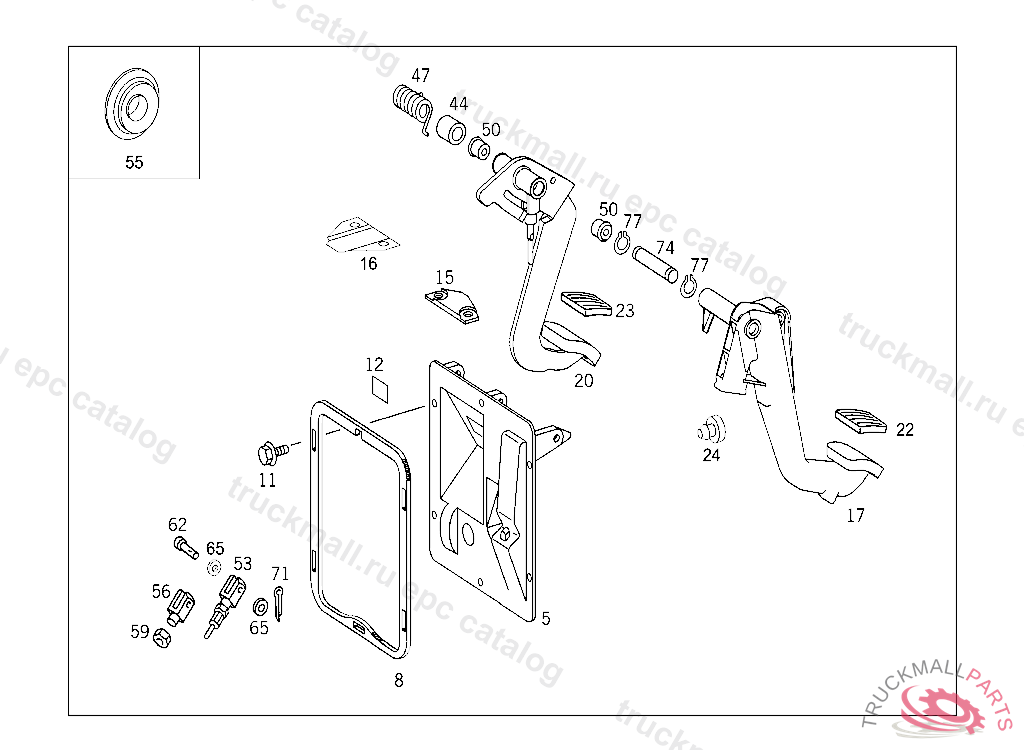

29 PEDAL ASSEMBLY
›
090 CLUTCH AND BRAKE PEDAL ASSEMBLY
Mercedes A6392920074 - Болт
1933 LS / 4X2 / 36 958.208
29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
Поз.
Артикул
Описание
5
A9402940301
5
A9702940001
5
A9402940701
8
A9702940080
8
A9735460286
GASKET MOUNTING FRAME,028481
11
N914125008311
SCREW DOOR CHECK TO BODY M8 X 20
11
N910106008022
16
A9412920245
PLATE SERVICE BRAKE VALVE TO PEDAL BEARING BRACKET
17
A9402900216
17
A9402900016
PEDAL CLUTCH
20
A9402900118
20
A9702900018
PEDAL BRAKE
22
A2012910282
PAD CLUTCH PEDAL
23
A2012920082
PAD BRAKE PEDAL
24
A6732910286
STOP CLUTCH PEDAL AND BRAKE PEDAL
44
A9702940053
SPACER TUBE BRAKE PEDAL TO BEARING BRACKET
47
A9409930020
47
A6679930220
SPRING BRAKE PEDAL RESET
50
A1242920050
BUSHING BRAKE PEDAL
53
A9702900239
55
A6949977081
56
N071752008003
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
59
N304032008005
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
62
A6392920074
PIN ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
71
N912011008000
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
74
A9702940274
PIN CLUTCH AND BRAKE PEDALS TO BEARING BRACKET
77
N000471016001
LOCK RING , Replaced By: A0079942041
