47 FUEL SYSTEM
175 FUEL PRE- FILTER, WATER SEPARATOR

Mercedes N007603016102 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

2625,2628K/B,2825,2826KB2831K/B/6X4 958.260

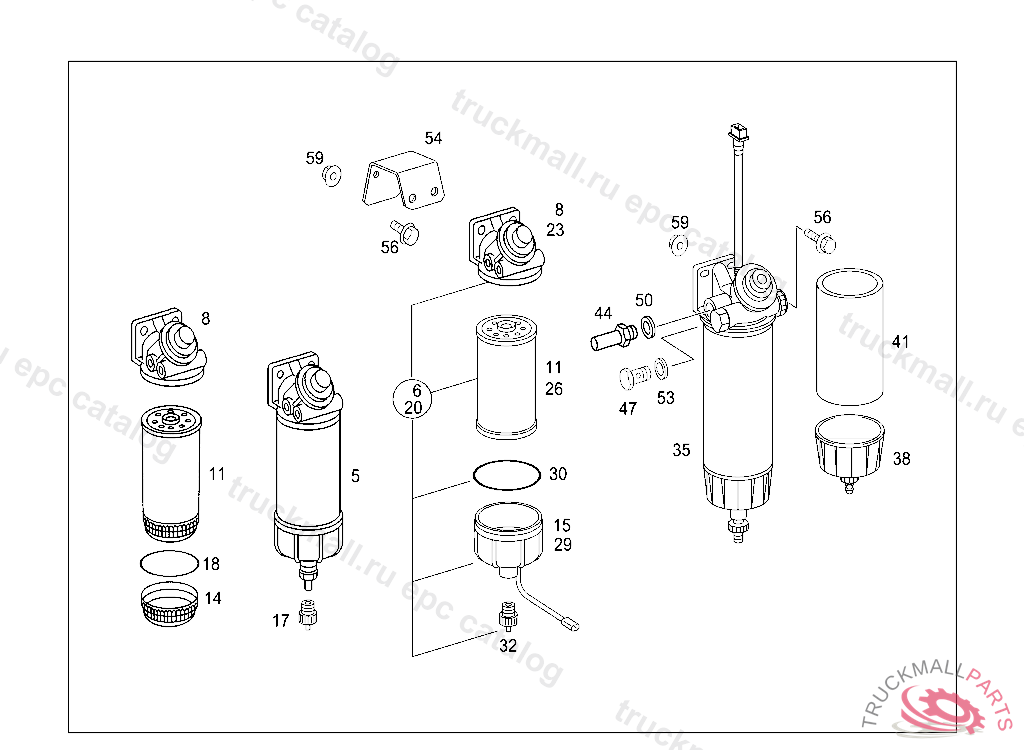

47 FUEL SYSTEM - 175 FUEL PRE- FILTER, WATER SEPARATOR

Поз.
Артикул
Описание
5
A6954700090
FUEL FILTER
5
A9584700390
FUEL FILTERMANN
5
A9584700090
6
A9584700190
8
A3760900012
8
A9584770008
8
A3760927208
FILTER HEAD
11
A9584770115
FILTER ELEMENTTOMANN
11
A9584770015
11
A9794770015
FILTER ELEMENTTORACOR
14
A9584770116
PART NAME MISSINGTOA 958 470 04 90 (MANN)
14
A9584770216
14
A3760927104
FILTER BOWL. TRAY
15
A9794770007
BOTTOM PLATETOA 979 470 02 90
17
A3760927201
FITTING. FILTER
18
A0229974545
SEALING RINGTO A 958 477 01 16
20
A9584700290
20
A9794700190
23
A0004774508
FILTER HEAD. COVER
23
A3760927208
FILTER HEAD
26
A9584770115
FILTER ELEMENTTOMANN
26
A9794770015
FILTER ELEMENTTORACOR
29
A9584770016
29
A9794770007
BOTTOM PLATETOA 979 470 02 90
30
A0229974545
SEALING RINGTO A 958 477 01 16
32
A3760927201
FITTING. FILTER
35
A0004700469
SEPARATOR (WATER SEPARATOR), TO BE ADAPTED DURING ASSEMBLY
38
A0004772516
FILTER BOWL
41
A0004771302
FUEL FILTER
44
A9799970172
FITTING ON FUEL-WATER SEPARATOR TO A 688 470 00 90
47
N915036012203
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
50
N007603016102
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
53
N007603016401
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
54
A9584750240
56
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
56
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
56
N910105014005
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
59
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
59
N000000005662
NUT SUPPORT TO FRAME
59
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
