Mercedes N91 014 30 08005 - БОЛТ М8

2625,2628K/B,2825,2826KB2831K/B/6X4 958.260

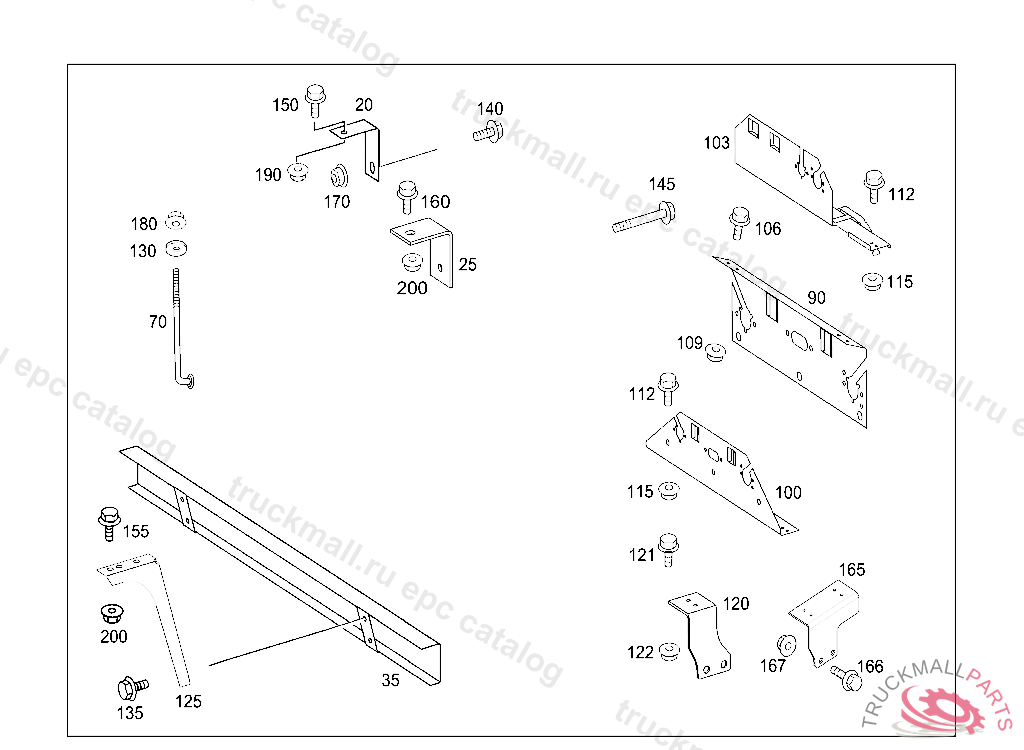

52 SHEET METAL,AIR INTAKE - 375 REAR UNDERRUN PROTECTION

Поз.
Артикул
Описание
25
A3824929541
BRACKET EXHAUST PIPE TO TRANSMISSION,D 171325
35
A3945207171
BUMPER REAR
70
A6345410044
HOOK BATTERY MOUNTING
125
A9585250140
125
A9585250240
130
N009021010102
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
130
N009021010209
WASHER BRACKET TO COVERING
135
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
135
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
140
N910105008010
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
140
N910143008005
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
155
N910105014005
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
160
N910105014010
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
170
N913023008003
NUT HORN TO BRACKET M8
180
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
180
N910112010001
NUT , Replaced By: N913023010002
200
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
