Главная
›
Mercedes
›
TRUCK
›
2036 / 2041 LS/4X2/36
›
958.434
›
31 FRAME
›

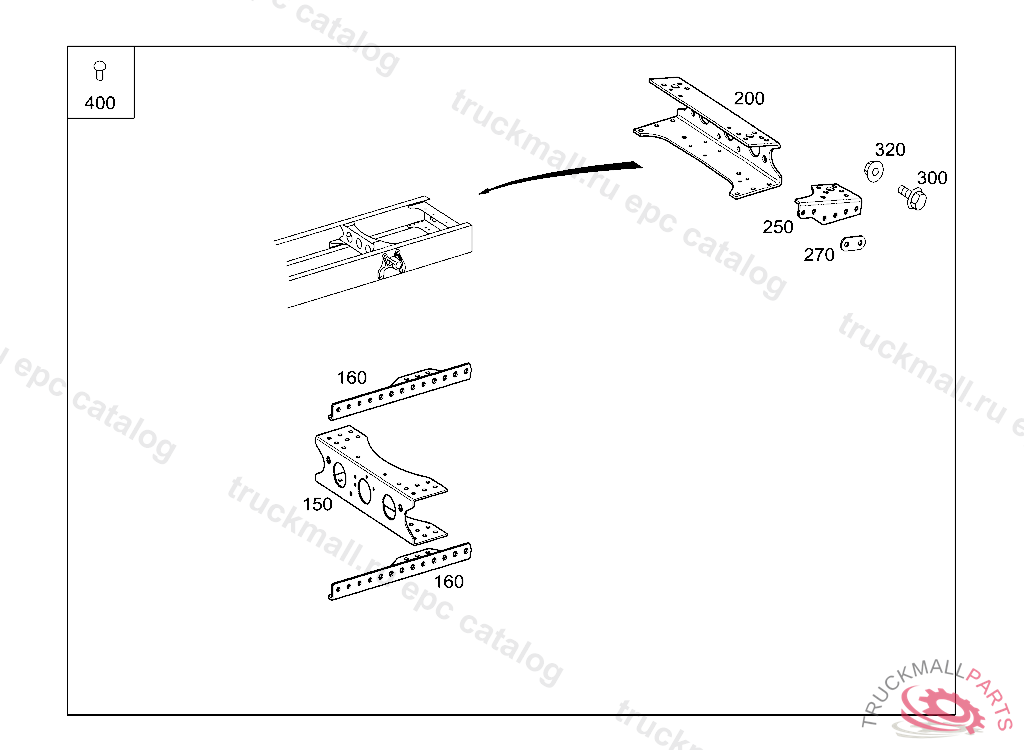

210 REAR FRAME AREA IL. 2
Mercedes A9413128587 -
2036 / 2041 LS/4X2/36 958.434
31 FRAME - 210 REAR FRAME AREA IL. 2
Поз.
Артикул
Описание
150
A9413120625
CROSS MEMBER SUBSEQUENT INSTALLATION
160
A9413128687
160
A9413128587
200
A9413120035
CROSS MEMBER (REAR CROSS MEMBER)
250
A9413121687
GUSSET PLATE LEFT
250
A9413121787
GUSSET PLATE RIGHT
270
A9303120080
300
N000000005517
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X50
300
N000000005514
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
320
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
400
N910005014053
RIVET14X38 MM, TO BE ADAPTED DURING ASSEMBLY
400
N910005014050
RIVET SUPPORT TO SIDE MEMBER 14X45 MM
