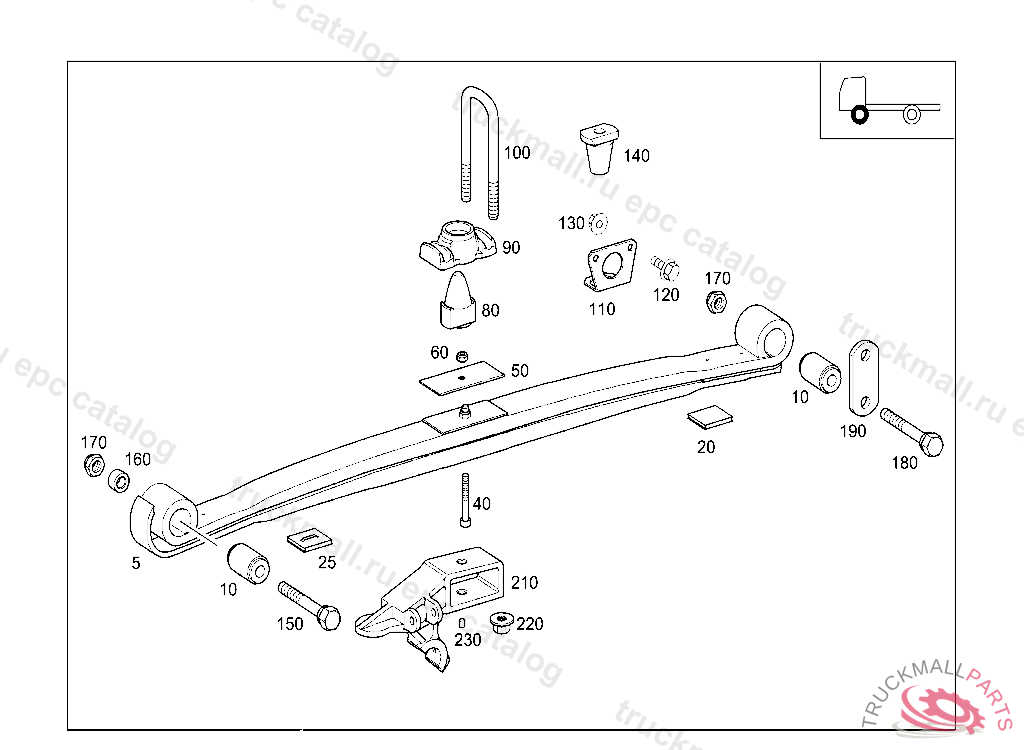

Поз.
Артикул
Описание
5
5
10
RUBBER MOUNTING
10
20
20
25
25
40
50
SHIM BETWEEN THE SPRING LEAVES
60
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
80
RUBBER BUFFER ON SPRING CLAMPING PLATE
90
100
U-BOLT FRONT SPRINGS TO FRONT AXLE 207MM
110
BRACKET HELPER SPRING
120
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
130
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
140
HELPER SPRING SPRING STOP
150
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET M 24X180
160
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
170
NUT FRONT SPRING TO FRONT SPRING FRONT BRACKET M24X2
180
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET M 24X150
190
SHACKLE FRONT SPRING,REAR
210
SHIM (BRACKET) ANTI-ROLL BAR AND SHOCK ABSORBER,LEFT, NO.7390I I I I II
210
SHIM (BRACKET) ANTI-ROLL BAR AND SHOCK ABSROBER RIGHT, NO.7390I I I I II
220
HEXAGON NUT W COLLAR MOUNTING PARTS M20X1.5
230
PIN , Replaced By: A6573310074
