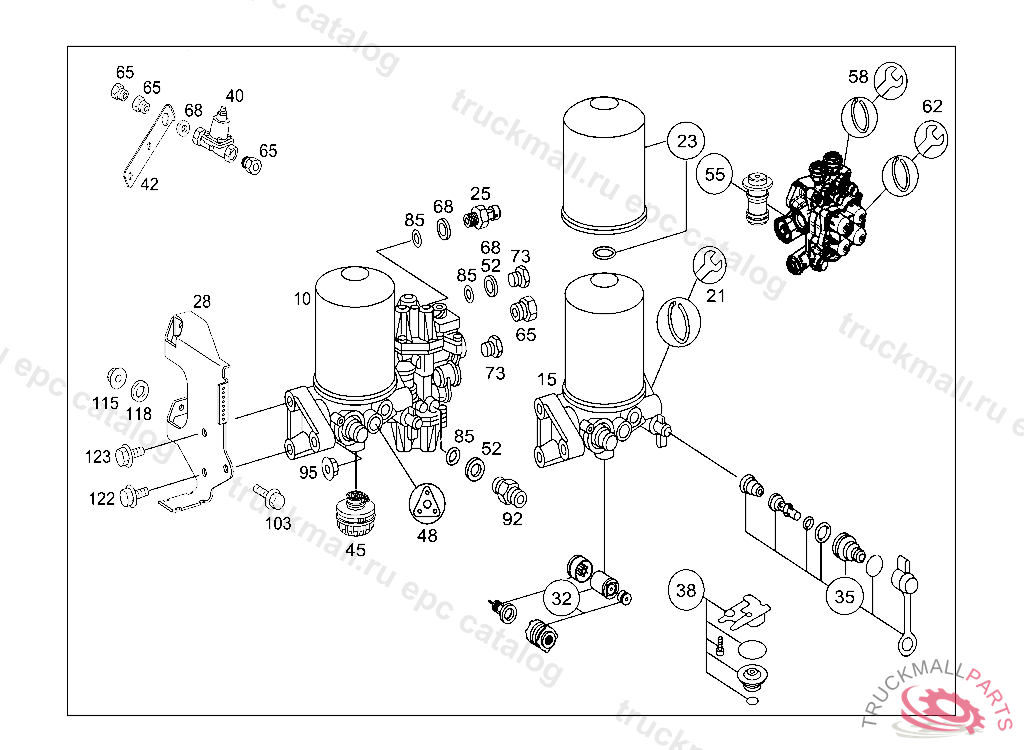

Поз.
Артикул
Описание
10
VALVE. ANTI-FREEZE DEVICE VALVE CLUSTERKNORR,D 625031
10
10
15
15
25
SENDER UNIT FOUR-CIRCUIT PROTECTIVE VALVE
28
40
OVERFLOW VALVE10BAR
42
52
THRUST RING CHECK VALVE TO AIR RESERVOIR
65
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
65
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
65
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
68
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
73
SCREW PLUGROCKINGER,TYP 59 U150
85
O-RING CHECK VALVE TO AIR RESERVOIR
85
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
85
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
92
SCREW-IN FITTING RELAY VALVE,CONNECTIONS: "32,34"
95
NUT BRACKET TO SIDE MEMBER M12X1.5
122
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
123
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
