Mercedes A9413128587 -

2536 / 2541 LS/6X2/31 958.441

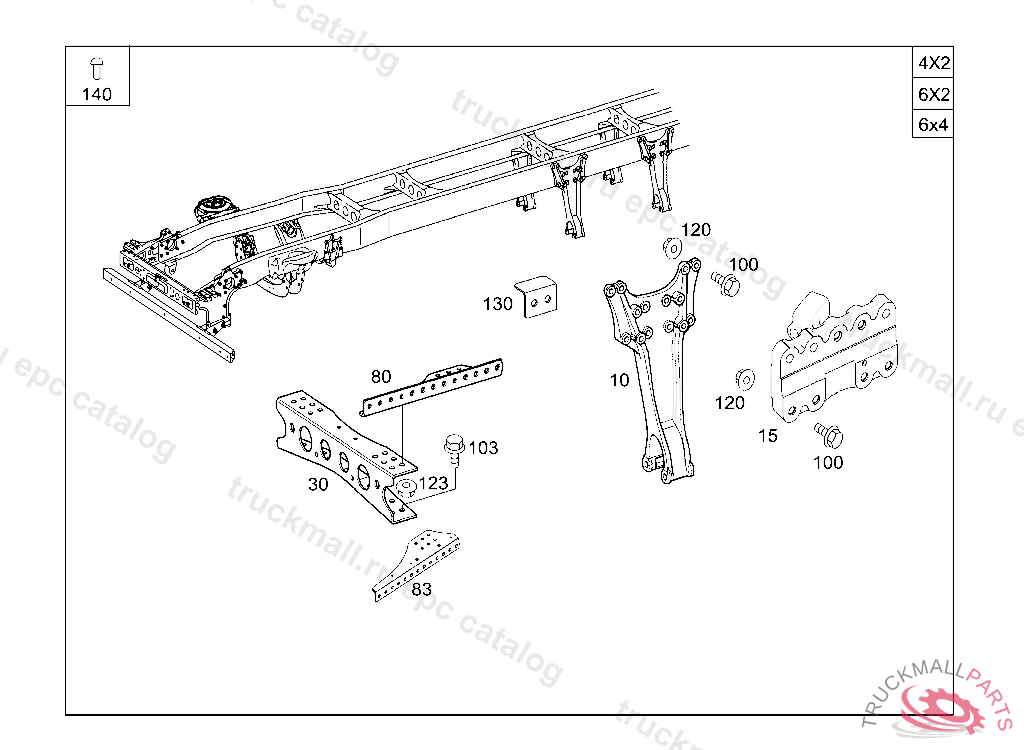

31 FRAME - 210 REAR FRAME AREA IL. 1

Поз.
Артикул
Описание
10
A9583251709
15
A9473250909
BEARING BRACKET TRIANGULAR CONTROL ARM TO FRAME,LEFT, NO.7390 IIIII I
15
A9473251009
BEARING BRACKET TRIANGULAR CONTROL ARM TO FRAME,RIGHT, NO.7390 IIIII I
30
A9583120725
80
A9413128687
80
A9413128587
83
A9583124287
83
A9583124187
100
N000000005568
HEXAGON HEAD BOLT SUPPORT TO SIDE MEMBER M18X1.5X130
100
N000000005517
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X50
100
N910105018029
HEXAGON HEAD BOLT ANGLE TO SPRING BRACKET
100
N000000005563
HEXAGON HEAD BOLT STEERING BRACKET TO FRAME M18X1.5X50
100
N910105018030
SCREW BRACKET TO FRAME M 18X110
100
N910105018027
HEXAGON HEAD BOLT TOWING EYE TO FRAME M18X1.5X80
120
N000000005739
NUT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5
130
A9583113851
140
N910005014050
RIVET SUPPORT TO SIDE MEMBER 14X45 MM
