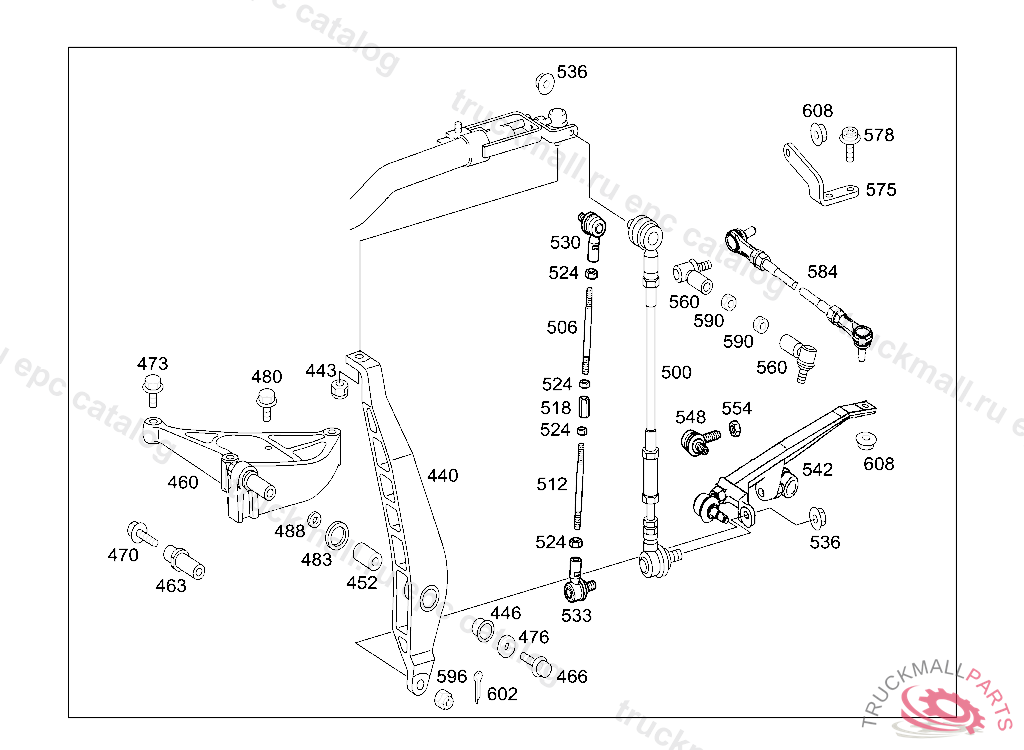

Поз.
Артикул
Описание
440
LEVER CONNECTION,TELESCOPIC TUBE AND BEARING BRACKET
443
NUT LINKAGE TO TRANSMISSION AND SHIFTING TUBE
446
BEARING
452
BUSHING
460
BRACKET (BEARING BRACKET), Replaced By: A9452602562
463
PIN
466
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
470
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
473
SCREW , Replaced By: N910105010017
476
WASHER LEVER TO BRACKET 30X10.5X4 MM
480
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
483
THRUST WASHER LEVER TO BEARING BRACKET
488
WASHER SHIFT LEVER TO FRONT SHIFTING TUBE
500
PULL ROD TELESCOPIC TUBE ON LEVER
506
PULL ROD90 MM, TO BE ADAPTED DURING ASSEMBLY
512
518
TURNBUCKLE ,K 131522
524
NUT BRACKET TO FRAME
524
NUT L.H. THREAD
530
ARTICULATION PIECE
533
ARTICULATION PIECE
536
NUT LINKAGE TO TRANSMISSION AND SHIFTING TUBE
542
548
ARTICULATION PIECE
548
554
HEXAGON NUT PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
560
ARTICULATION PIECE
560
ARTICULATION PIECE R.H. THREAD
575
BRACKET SHIFTING ROD TO TRANSMISSION
578
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION
578
HEXALOBULAR BOLTM8X34
584
590
NUT L.H. THREAD
590
NUT BRACKET TO FRAME
596
NUT REAR SHIFTING ROD TO SHAFT M 10X1
602
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
608
NUT LINKAGE TO TRANSMISSION AND SHIFTING TUBE
