Главная
›
Mercedes
›
TRUCK
›
2541 / 2644 LS/6X2/36
›
958.444
›
29 PEDAL ASSEMBLY
›
090 CLUTCH AND BRAKE PEDAL ASSEMBLY
Mercedes A6392920074 - Болт
2541 / 2644 LS/6X2/36 958.444

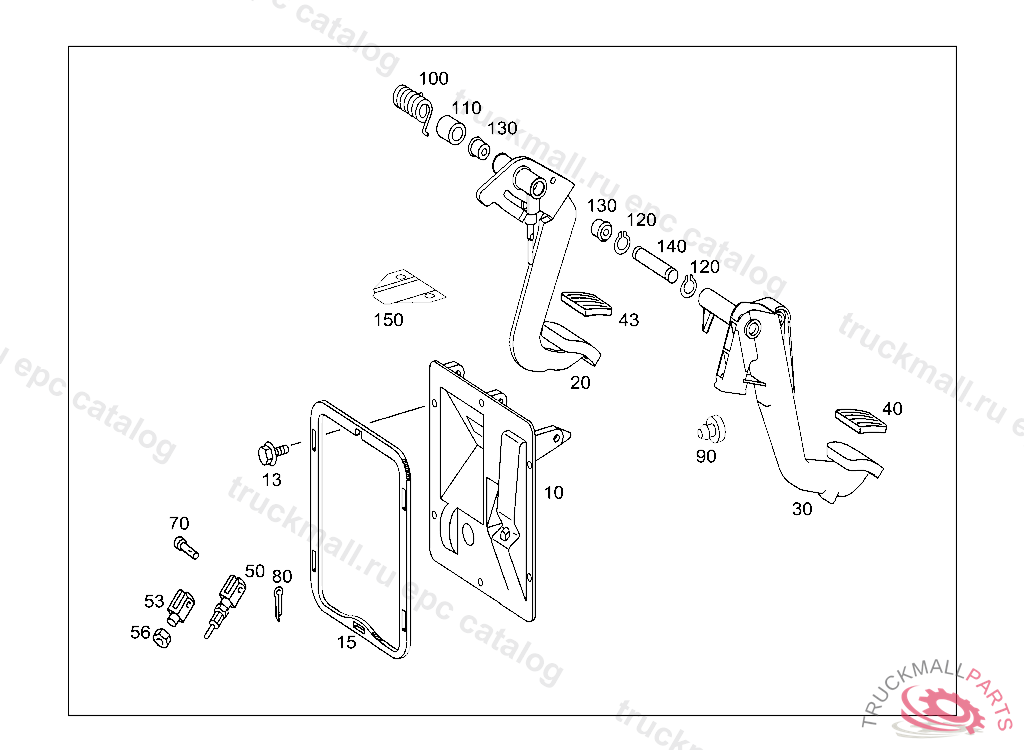

29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
Поз.
Артикул
Описание
10
A9402940701
13
N910106008022
15
A9702940080
20
A9402900118
30
A9402900216
40
A2012910282
PAD CLUTCH PEDAL
43
A2012920082
PAD BRAKE PEDAL
50
A9702900239
53
N071752008003
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
56
N304032008005
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
70
A6392920074
PIN ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
80
N912011008000
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
90
A6732910286
STOP CLUTCH PEDAL AND BRAKE PEDAL
100
A9409930020
110
A9702940053
SPACER TUBE BRAKE PEDAL TO BEARING BRACKET
120
N000471016001
LOCK RING , Replaced By: A0079942041
130
A1242920050
BUSHING BRAKE PEDAL
140
A9702940274
PIN CLUTCH AND BRAKE PEDALS TO BEARING BRACKET
150
A9412920245
PLATE SERVICE BRAKE VALVE TO PEDAL BEARING BRACKET
