Mercedes N304032006004 - Гайка / mutter

2541 / 2644 LS/6X2/36 958.444

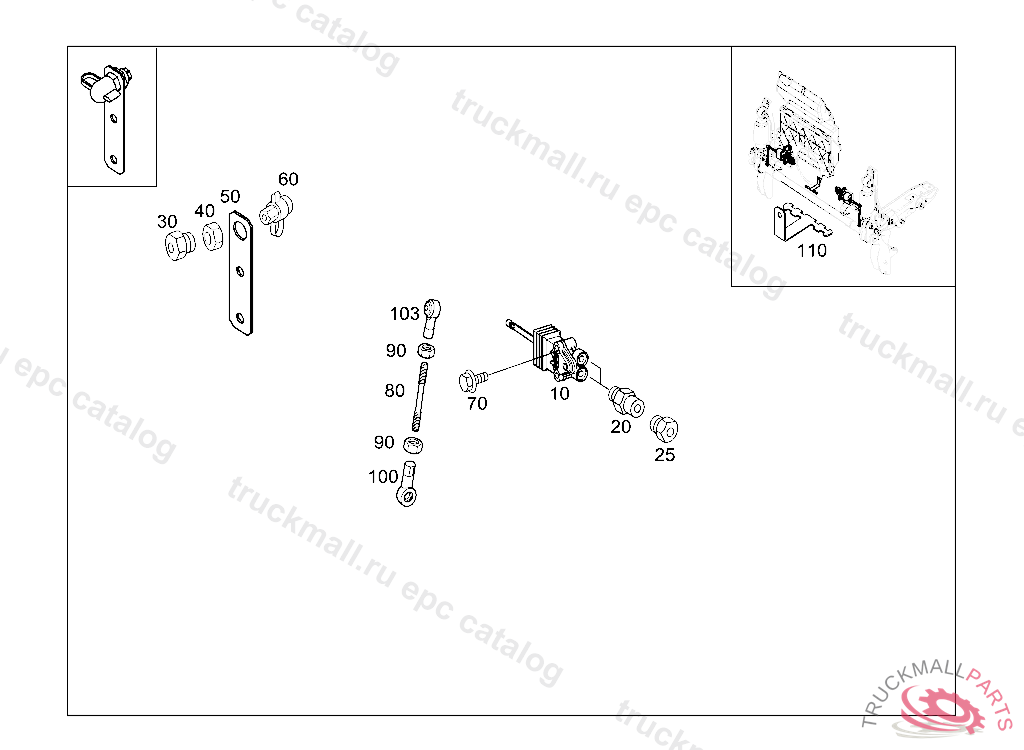

31 FRAME - 340 CAB AIR-SPRING VALVES,FRONT

Поз.
Артикул
Описание
10
A0003284530
VALVE AIR SUSPENSION,CAB SUSPENSION,FRONT
20
A0079972272
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 10X1/ M 10X1
25
A0009974934
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
30
A0009974934
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
40
N080705016003
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
50
A9584299568
60
A0014311931
TEST CONNECTION WITH INTERNAL THREAD M10X1
70
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
80
N900331006630
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
90
N304032006004
NUT SPRING-LOADED PUSH ROD
90
N304032006005
NUT L.H. THREAD
100
A9453280063
JOINT R.H. THREAD
103
A9453280163
JOINT L.H. THREAD
110
A9583280140
999
A9443200189
