Mercedes N007603016102 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

2541 / 2644 LS/6X2/36 958.444

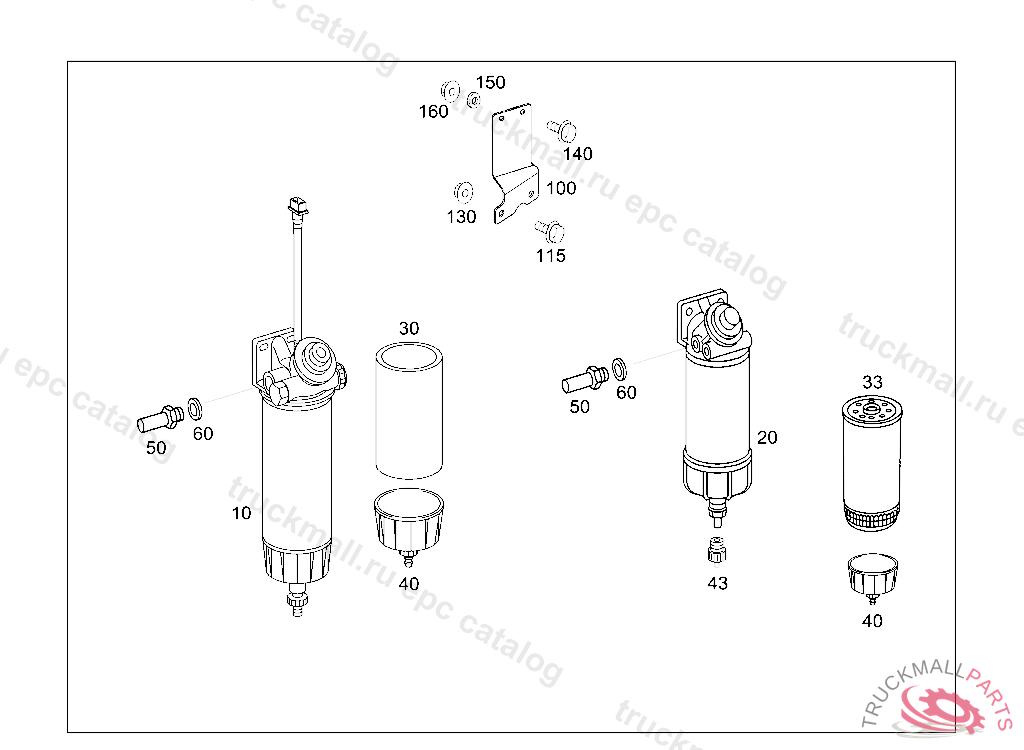

47 FUEL SYSTEM - 175 FUEL PRE- FILTER, WATER SEPARATOR

Поз.
Артикул
Описание
10
A0004700469
SEPARATOR (WATER SEPARATOR), TO BE ADAPTED DURING ASSEMBLY
20
A9584700090
30
A0004771302
FUEL FILTER
33
A9584770015
40
A9584770216
40
A0004772516
FILTER BOWL
43
A3760927201
FITTING. FILTER
50
A9799970172
FITTING ON FUEL-WATER SEPARATOR TO A 688 470 00 90
60
N007603016401
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
60
N007603016102
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
100
A9584751940
115
N000000005514
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
130
N000000005662
NUT SUPPORT TO FRAME
140
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
150
A3529902440
WASHER CONSOLE TO FRAME
160
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
