Mercedes A9585203533 -

3340,3340S/K,3344 3344,3344S/K,4140,4144 958.471

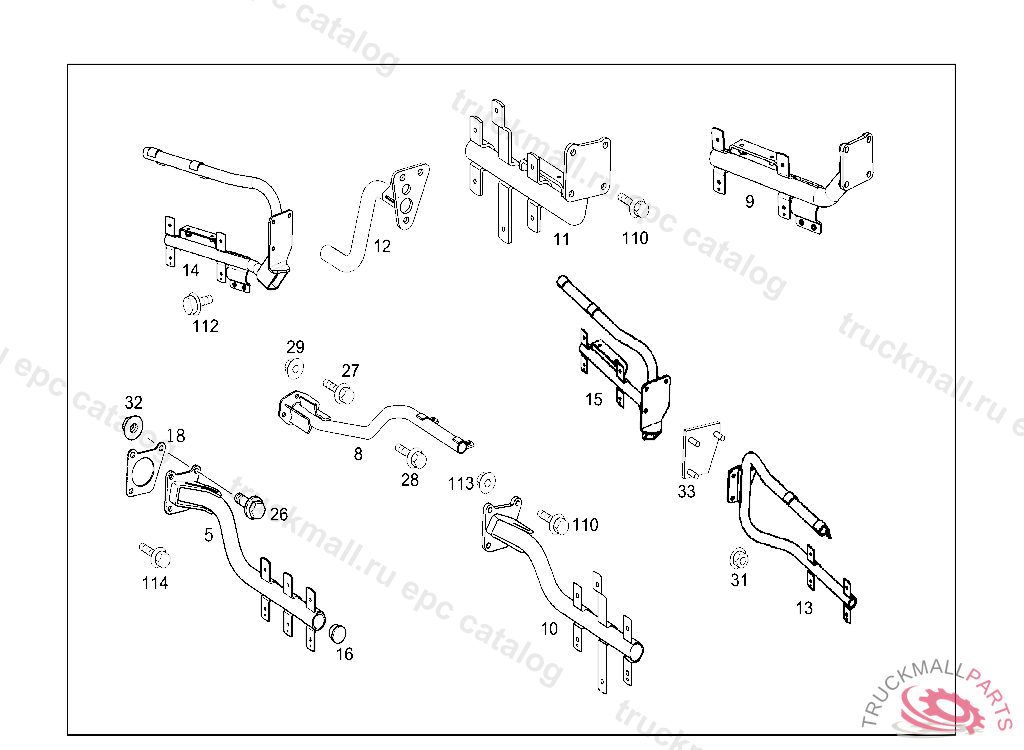

52 SHEET METAL,AIR INTAKE - 060 FENDER IL. 1

Поз.
Артикул
Описание
10
A9415205133
SUPPORT LEFT FRONT FENDER
11
A9585203533
11
A9585205433
12
A9585204933
13
A9585202633
14
A9585205033
15
A9585202733
16
A9415250138
CAP AT BRACKET
18
A9425210249
MOUNTING PLATE LEFT FRONT FENDER
27
N000000005519
SCREW. HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X35,V 207570
28
N000000005721
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
31
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
33
A9585200682
110
N910105014011
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
112
N910105008011
SCREW STOP TO BATTERY CASE
113
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
114
N910105014013
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
114
N910105014012
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
999
A3755208641
999
A3755208741
