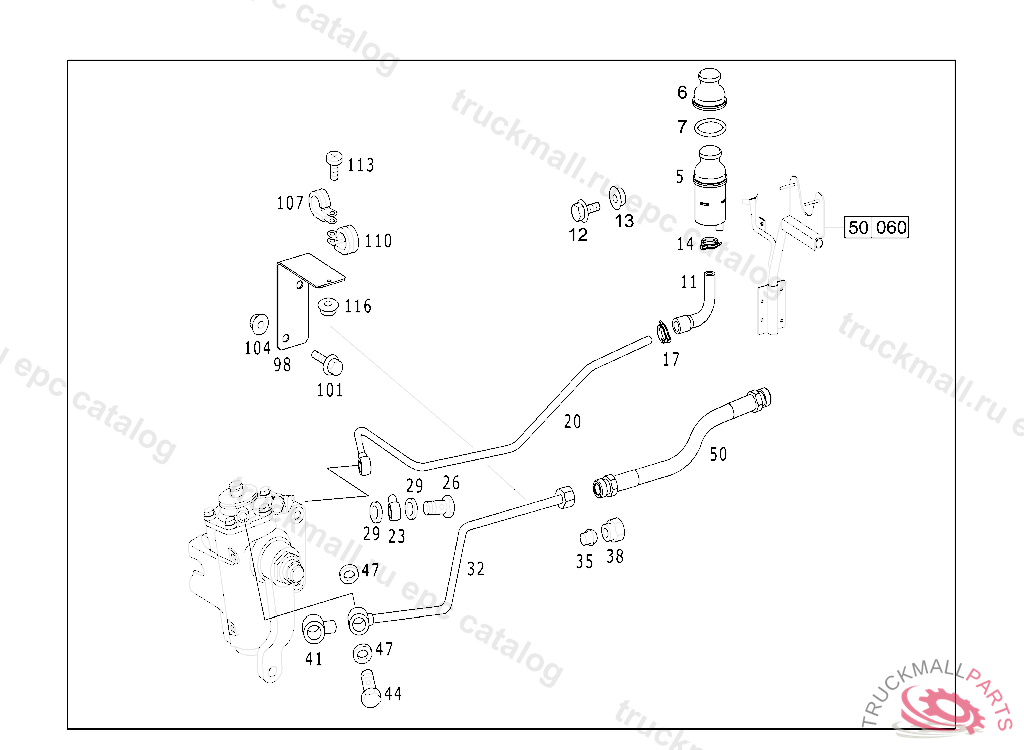

Поз.
Артикул
Описание
5
6
7
SEAL RING
11
12
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
13
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
14
14
17
17
20
20
23
BANJO UNION COMPRESSED AIR LINE TO AIR COMPRESSOR
26
HOLLOW SCREW
29
SEAL RING SOLENOID VALVE A 18X24
32
32
35
GLAND , Replaced By: A0019901967
38
UNION NUT LINE CONNECTION, Replaced By: N000000006239
41
BANJO UNION
44
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
44
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
47
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
50
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
50
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
50
HOSE DELIVERY LINE TO PUMP
98
101
SCREWM 10X20
104
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
107
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
110
CLAMP LINE MOUNTING
113
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
113
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
116
NUT BRACKET TO FIRE WALL
999
999
CLAMP HOSE TO HEAT EXCHANGER 32 MM
999
CLAMP HOSE TO HEAT EXCHANGER 23-26 MM
999
LOOM TIE FROM CHARGING AIR INTERCOOLER TO ENGINE
