Главная
›
Mercedes
›
TRUCK
›
915C
›
979.048
›
47 FUEL SYSTEM
›

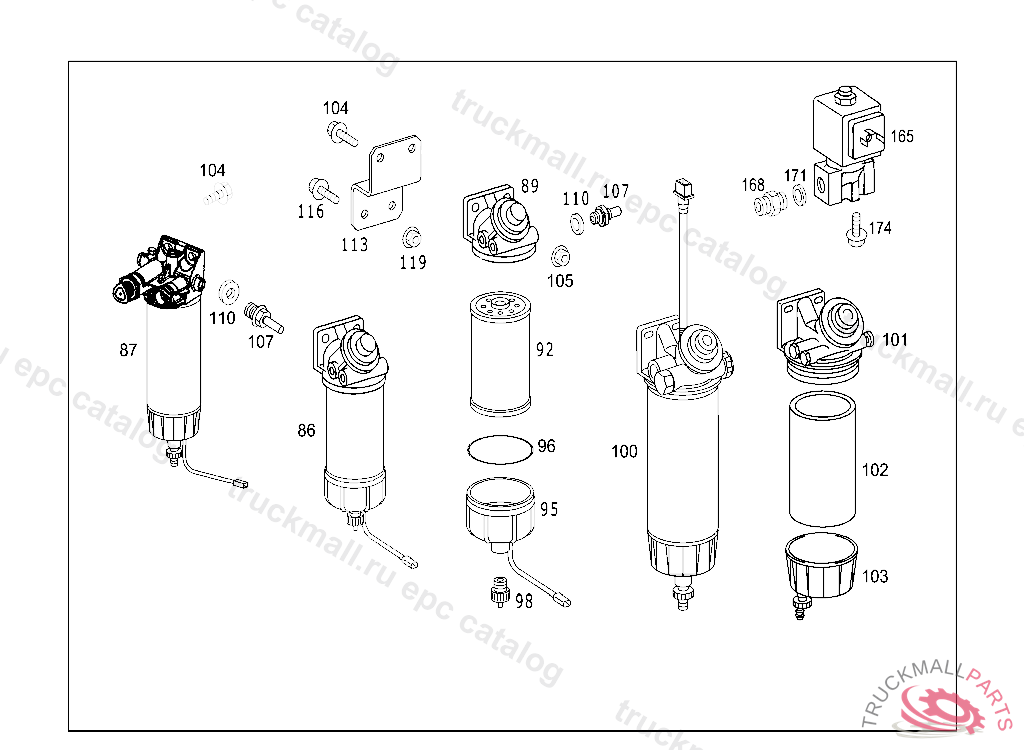

090 FUEL LINES,FUEL FILTER,AND BRACKET IL. 3
Mercedes N007603016102 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
915C 979.048
47 FUEL SYSTEM - 090 FUEL LINES,FUEL FILTER,AND BRACKET IL. 3
Поз.
Артикул
Описание
86
A9584700290
86
A9794700190
89
A3760927208
FILTER HEAD
89
A9584770008
92
A9794770015
FILTER ELEMENTTORACOR
92
A9584770115
FILTER ELEMENTTOMANN
95
A9584770016
95
A9794770007
BOTTOM PLATETOA 979 470 02 90
96
A0229974545
SEALING RINGTO A 958 477 01 16
98
A3760927201
FITTING. FILTER
100
A0004700469
SEPARATOR (WATER SEPARATOR), TO BE ADAPTED DURING ASSEMBLY
101
A0004774508
FILTER HEAD. COVER
102
A0004771302
FUEL FILTER
103
A0004772516
FILTER BOWL
104
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
105
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
107
A9799970172
FITTING ON FUEL-WATER SEPARATOR TO A 688 470 00 90
110
N007603016102
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
113
A9794770041
116
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
119
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
A0025403217
999
A9794700164
999
A9794760126
