Поз.
Артикул
Описание

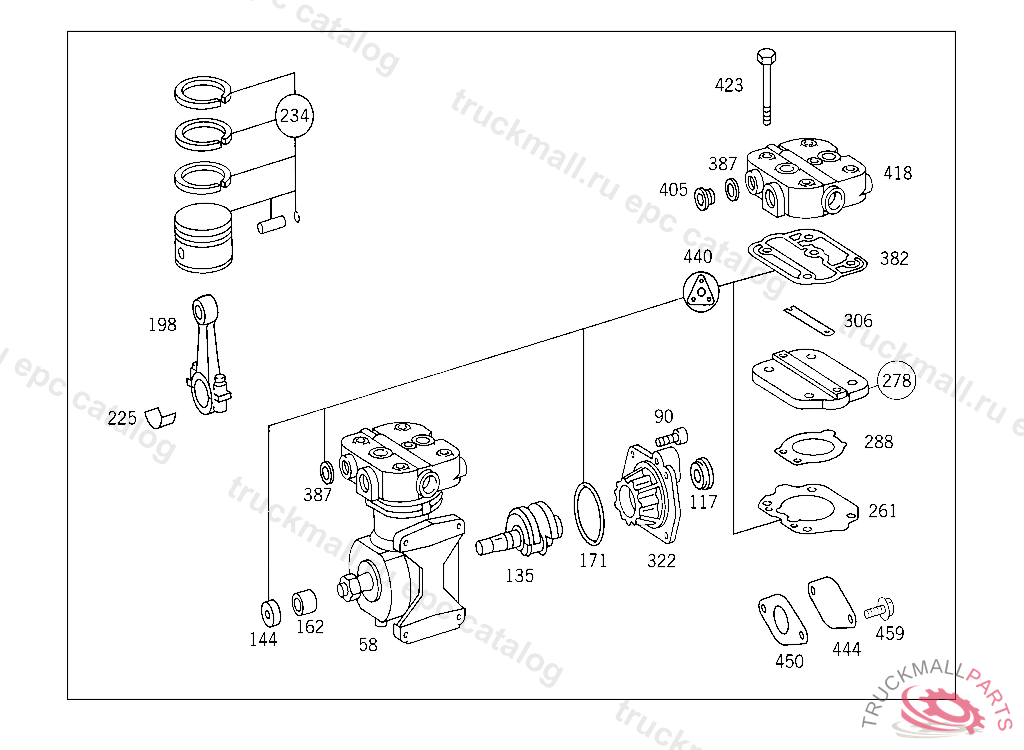

58
COMPRESSORWABCO 229 CCM
90
SCREW , Replaced By: A4609900601
90
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
90
SCREW , Replaced By: N000912008201
90
SCREW STEERING SHAFT BEARING TO CAB
117
CAP COVER TO AIR COMPRESSOR FLANGE TO 003 131 48 01
135
CRANKSHAFTTO 003 131 59 01
135
CRANKSHAFTWABCO
144
SEAL RING CRANKSHAFT SEALING,FRONT WABCO
162
BUSHING FRONT BEARING
162
BUSHINGTO 376 131 74 01
162
BUSHING FRONT BEARING
171
SEAL RING BEARING CAP TO HOUSING TO 001 131 52 01
171
SEAL RINGTO 376 131 74 01
171
SEAL RING BEARING CAP TO HOUSING
198
CONNECTING ROD LESS BEARING SHELLS TO 003 131 48 01,004 131 58 01
198
CONNECTING RODTO 003 131 59 01
225
BEARING SHELLTO 003 131 48 01,004 131 58 01
234
PISTONTO 003 131 59 01
234
PISTONTO 003 131 48 01,004 131 58 01
234
PISTONTO 376 131 74 01
234
PISTON , Replaced By: A0001312007
261
GASKET , Replaced By: A4421310980
261
GASKET , Replaced By: A0011316480
261
GASKETWABCO
261
GASKETTO 003 131 48 01
261
GASKET
278
VALVE PARTS KIT WABCO
288
VALVE DISC (SUCTION DISC)
288
VALVE DISC (SUCTION DISC) TO 003 131 48 01,004 131 58 01
306
VALVE DISC (PRESSURE DISC) TO 004 131 01 01
306
VALVE DISC , Replaced By: A0001313831
306
VALVE DISC (PRESSURE DISC)
322
BEARING CAP
382
GASKET
387
SEAL RING TO PLUG AIR COMPRESSOR CYLINDER HEAD TO 003 131 48 01
387
SEAL RING LINE TO OIL PUMP
387
SEAL RINGTO 376 131 74 01
405
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
405
SCREW PLUG , Replaced By: N000908022011
405
SCREW PLUG , Replaced By: N000908026008
405
SCREW PLUG , Replaced By: A0009973532
405
SCREW PLUG OIL COOLER,5 360280
418
CYLINDER HEADWABCO
423
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
423
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
423
SCREW CLUTCH TO FLYWHEEL,760271
423
SCREW STRAP TO BRACKET
423
SCREW VALVE TO BRACKET
423
SCREW PLATE TO TRANSMISSION CASE M 8 X 70
423
SCREW , Replaced By: N304017008053
423
SCREW VALVE TO BRACKET, Replaced By: N304014008002
423
SCREW VALVE TO BRACKET
440
GASKET KIT AIR COMPRESSOR
444
CAP TO PLUG AIR COMPRESSOR,REAR
450
GASKET COVER TO TIMING CASE, Replaced By: A0259976947
450
GASKET , Replaced By: A3661310080
450
FLANGE GASKET COVER TO TIMING CASE
459
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
459
SCREW , Replaced By: N910105010009
459
SCREW , Replaced By: N304017010040
459
SCREW STRUT TO CROSS MEMBER M 10X25
999
CYLINDER HEADKNORR
999
CRANKSHAFTKNORR
999
COMPRESSORWABCO 225CCM, NOT USED
999
COMPRESSORWABCO 225CCM, NOT USED
999
V-BELT SET2 PIECES 12.5X1000
999
SEAL RING OIL RETURN TO TIMING CASE
999
SEAL RING OIL RETURN TO TIMING CASE
999
EXPANSION PLUG , Replaced By: A3660100019
999
BRACKET FUEL FILTER
999
SUSPENSION EYE
999
CONNECTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 364 006362 366 034506, Replaced By: A3641870037
999
INTERMEDIATE PIECE OIL RETURN TO TIMING CASE
999
BUSHING OIL RETURN TO TIMING CASE
