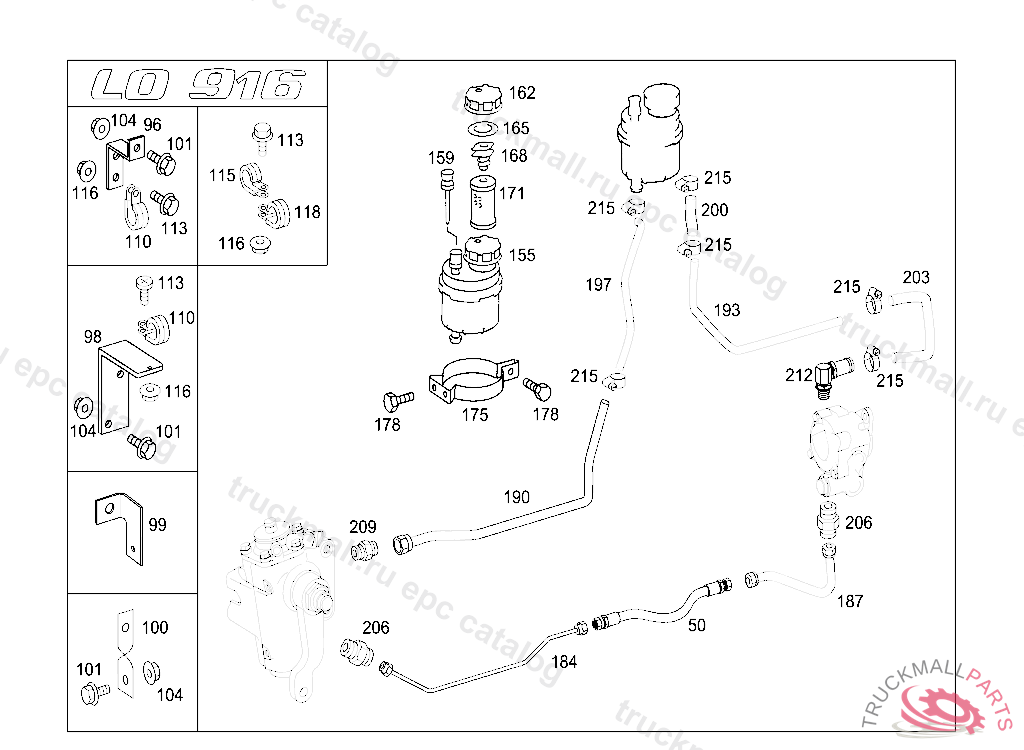

Поз.
Артикул
Описание
50
50
50
50
96
BRACKET BRACKET TO LEFT SIDE MEMBER
98
99
100
BRACKET LINE MOUNTING
101
SCREW BRACKET TO SIDE MEMBER M10X35
101
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
104
NUT REINFORCEMENT TO BRACKET
104
NUT BRACKET TO FIRE WALL
110
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
113
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
115
CLAMP LINES TO BRACKET
116
NUT BRACKET TO FIRE WALL
118
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
118
CLAMP OIL DIPSTICK TO RADIATOR
155
TANK POWER STEERING
159
OIL DIPSTICK ,D 523393
162
FILLER CAP
165
SEAL RING
168
BRACKET
171
FILTER ELEMENT ,D 441028D 523393
175
STRAP OIL TANK
178
SCREWM 10X20
184
187
190
193
193
197
HOSE RETURN, FROM STEERING TO OIL TANK
200
203
203
206
FITTING HOSE LINE TO HYDRAULIC PUMP,D 291813
209
209
SEAL CONE RETURN LINE TO VALVE M18 X 7/8"
212
212
FITTING LINE TO OIL PUMP
215
CLAMP HOSE TO FITTING AND TO OIL TANK
