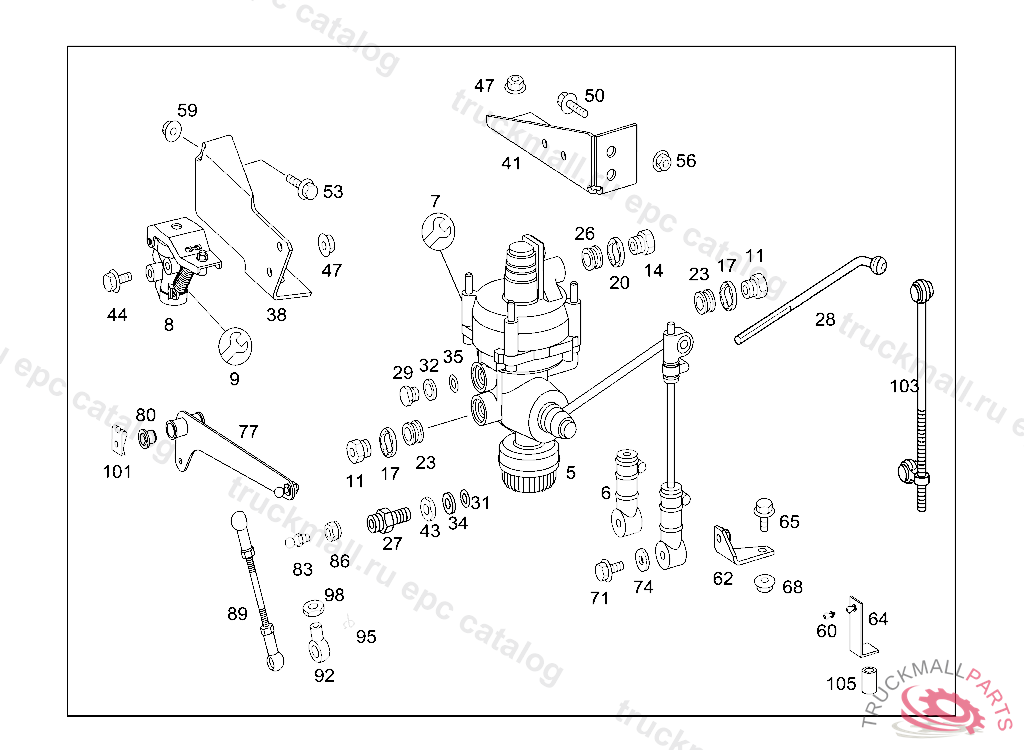

Поз.
Артикул
Описание
5
11
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
14
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
27
FITTING LOCKING VALVE
28
LEVER , Replaced By: A9704310439
29
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
31
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
32
THRUST RING CHECK VALVE TO AIR RESERVOIR
34
THRUST RING LOCKING VALVE
35
O-RING CHECK VALVE TO AIR RESERVOIR
41
43
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
47
NUT HORN TO BRACKET M8
60
BALL PIVOT CONTROL SHAFT
62
64
65
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
65
SCREW VALVE TO BRACKET M 8X60
68
NUT HORN TO BRACKET M8
103
105
SPACER TUBE
