Поз.
Артикул
Описание

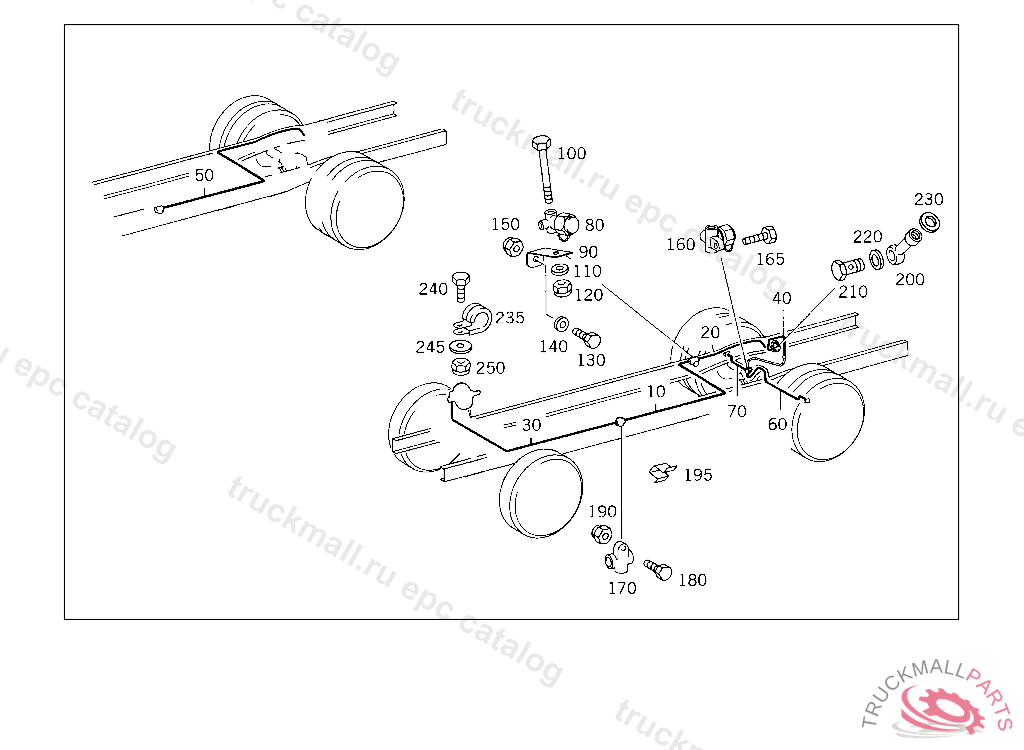

10
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
10
LINE FROM MASTER CYLINDER TO INTERMEDIATE PIECE 1850 MM
10
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
10
LINE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3404204229
20
LINE
20
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1300 MM
30
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
30
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE
30
LINE FROM BRAKE MASTER CYLINDER TO TEST CONNECTION
40
LINE FROM BRAKE POWER REGULATOR TO BRAKE HOSE
40
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
40
LINE FROM MASTER CYLINDER TO CONNECTOR 285 MM, TO BE ADAPTED DURING ASSEMBLY
50
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
50
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 3800 MM,4 478329
50
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
60
LINE FROM BRAKE POWER REGULATOR,CONNECTION "2",TO BRAKE HOSE 1250 MM
60
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 1200 MM
70
LINE FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE 415 MM,4 478330
70
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
80
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
80
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
90
BRACKET FLEXIBLE SHAFT TO ENGINE MOUNTING,4 855703
90
BRACKET AT CROSS MEMBER,D 030553
100
SCREW , Replaced By: N304017008040
100
SCREW BRACKET TO SIDE MEMBER
110
WASHER EXHAUST MUFFLER TO STRAP
110
WASHER , Replaced By: N000125008443
120
NUT , Replaced By: N913004008001
130
SCREW PIPE CLAMP
130
SCREW , Replaced By: N304017008021
140
WASHER , Replaced By: N000125008443
140
WASHER EXHAUST MUFFLER TO STRAP
150
NUT , Replaced By: N913004008001
160
TEST CONNECTION FRONT AXLE
160
TEST CONNECTION FRONT AXLE
165
SCREW BRACKET TO ENGINE
170
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
180
SCREW VALVE TO BRACKET
190
NUT , Replaced By: N913004008001
195
LOCK HYDRAULIC LINE TO CAB
200
CONNECTOR MASTER CYLINDER,CONNECTION "2.1",4 338292
210
HOLLOW SCREW CONNECTION "2.1",4 314611
220
SEAL RING FUEL LINE TO FEED PUMP
230
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
235
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
235
CLAMP ,K 147121, Replaced By: N000000000319
235
CLAMP , Replaced By: N916016008200
240
SCREW COVER PLATE TO BRACKET
245
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
250
NUT , Replaced By: N913004006001
250
NUT PUMP TO BRACKET
999
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 4000 MM,4 478329
999
LINE FROM DISTRIBUTOR TO VALVE 3600 MM,4 478330
999
LINE FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR 1650 MM, 734559
999
LINE FROM BRAKE POWER REGULATOR TO REAR AXLE BRAKE HOSE
999
CONNECTOR OIL DELIVERY LINE
