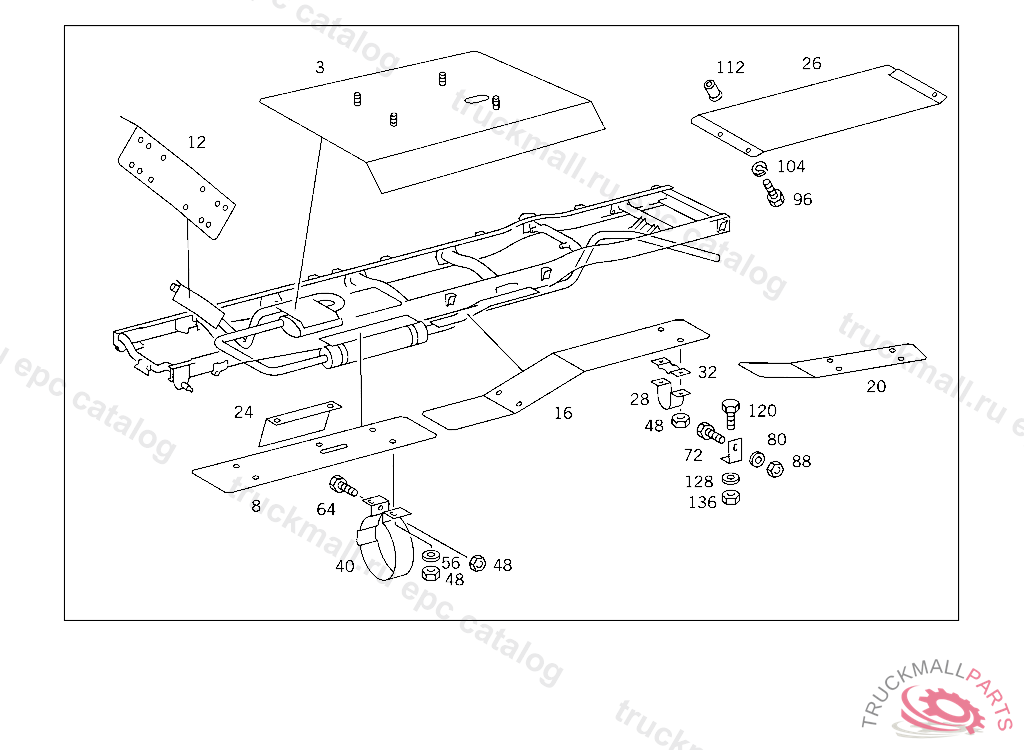

Поз.
Артикул
Описание
3
PROTECTIVE PLATE CAB FLOOR,192298-556499
8
PROTECTIVE PLATE CAB FLOOR,192298-556499
12
PROTECTIVE PLATE CLUTCH CYLINDER
16
PROTECTIVE PLATE FUEL PUMP,192298-556499
20
PROTECTIVE PLATE FUEL PUMP AND TANK
24
PROTECTIVE PLATE TRANSMISSION
26
PROTECTIVE PLATE CAB FLOOR,192298-556499
28
BRACKET PROTECTIVE PLATE
32
BRACKET PROTECTIVE PLATE
40
BRACKET PROTECTIVE PLATE TO EXHAUST MUFFLER
48
NUT LONGITUDINAL DIFFERENTIAL LOCK BRACKET,5 963747
56
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
64
SCREW , Replaced By: N304017006026
72
SCREW END PIECE TO EXHAUST PIPE M 10X25
80
WASHER RADIATOR TO RUBBER MOUNTING
80
WASHER , Replaced By: N000125010532
88
NUT , Replaced By: N910113010000
88
NUT STRAP TO BRACKET
96
SCREW , Replaced By: N304017008034
96
SCREW BRACKET TO CROSS CONNECTION STRUT
104
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
112
RIVETED NUT PROTECTIVE PLATE,192298-556499
120
SCREW PIPE CLAMP
120
SCREW , Replaced By: N304017008021
128
WASHER EXHAUST MUFFLER TO STRAP
128
WASHER , Replaced By: N000125008443
136
NUT , Replaced By: N913004008001
