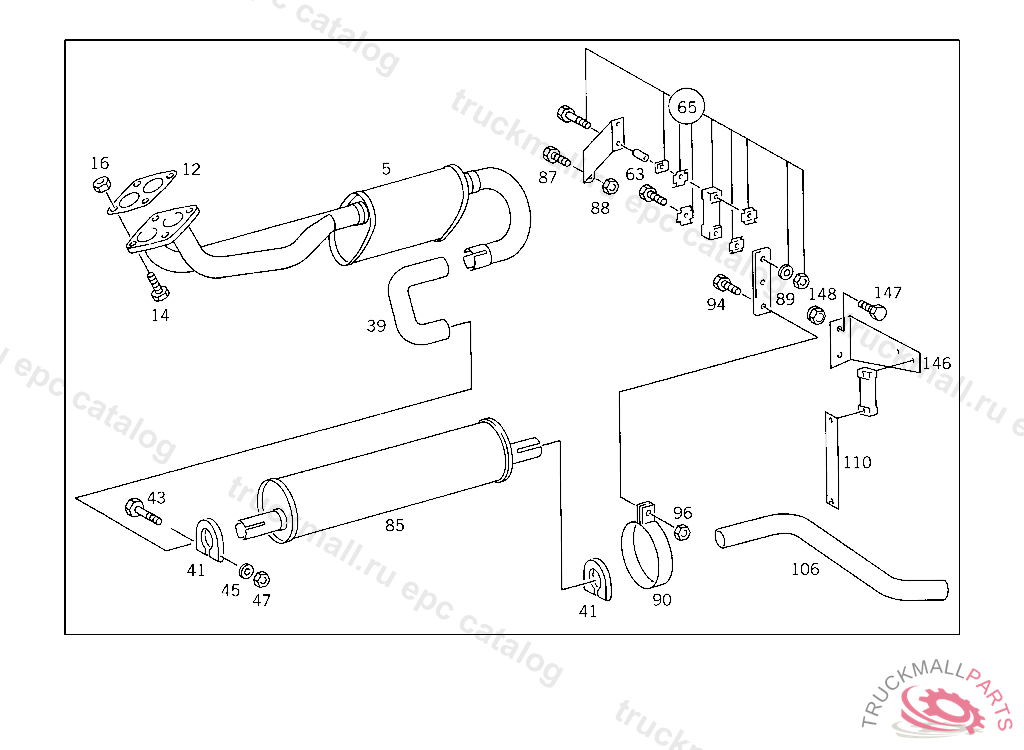

Поз.
Артикул
Описание
5
EXHAUST PIPE WITH PRE-MUFFLER,556500
5
EXHAUST PIPE , Replaced By: A3094904019
12
FLANGE GASKET , Replaced By: A1234920380
12
FLANGE GASKET , Replaced By: A1234920380
12
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD,556500
14
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
14
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
16
NUT CONNECTING PIPE TO EXHAUST BRAKE
39
FRONT EXHAUST PIPE FROM FRONT MUFFLER TO REAR MUFFLER,556500
41
CLAMP , 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
41
CLAMP , Replaced By: A1074900041
43
SCREW , Replaced By: N304017008053
43
SCREW , Replaced By: N304017008043
43
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
43
SCREW VALVE TO BRACKET M 8X55
45
WASHER , Replaced By: N000125008443
45
WASHER BRACKET TO CROSS MEMBER
45
WASHER EXHAUST MUFFLER TO STRAP
47
NUT , Replaced By: N913004008007
47
NUT , Replaced By: A1201420072
47
HEXAGON NUT SCREENING PLATE,5 163561
63
REPAIR KIT , Replaced By: A3094900037
65
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
85
EXHAUST MUFFLER (MAIN MUFFLER),556500
87
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
88
NUT STRAP TO BRACKET
88
NUT , Replaced By: N910113010000
89
BRACKET , Replaced By: A3184923441
89
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
90
BRACKET EXHAUST MUFFLER SUSPENSION
90
BRACKET REAR EXHAUST PIPE TO BRACKET
94
SCREW PIPE CLAMP
94
SCREW , Replaced By: N304017008021
96
NUT , Replaced By: N913004008007
96
NUT , Replaced By: A1201420072
96
HEXAGON NUT SCREENING PLATE,5 163561
106
REAR EXHAUST PIPE ,556500
106
REAR EXHAUST PIPE , FROM CHASSIS 556500 ALSO INSTALLED ON 553210,556146
110
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
146
BRACKET EXHAUST MUFFLER TO SUPPORT, TO BE ADAPTED DURING ASSEMBLY
147
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
148
NUT STRAP TO BRACKET
148
NUT , Replaced By: N910113010000
999
RUBBER BUFFER EXHAUST MUFFLER
999
NUT , Replaced By: N913004008007
999
CLAMP , Replaced By: A1144920040
999
SPACER TUBE DISTRIBUTOR TO REAR AXLE,344382
999
BUSHING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO., Replaced By: A3094280053
999
PROTECTIVE PLATE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER
999
BRACKET EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER
999
PROTECTIVE PLATE REAR EXHAUST PIPE
999
REPAIR KIT , Replaced By: A3094900037
999
EXHAUST MUFFLER , Replaced By: A3194901601
999
WASHER , Replaced By: N000125008443
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW , Replaced By: N304017008021
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW CLAMP TO EXHAUST PIPE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
