Поз.
Артикул
Описание

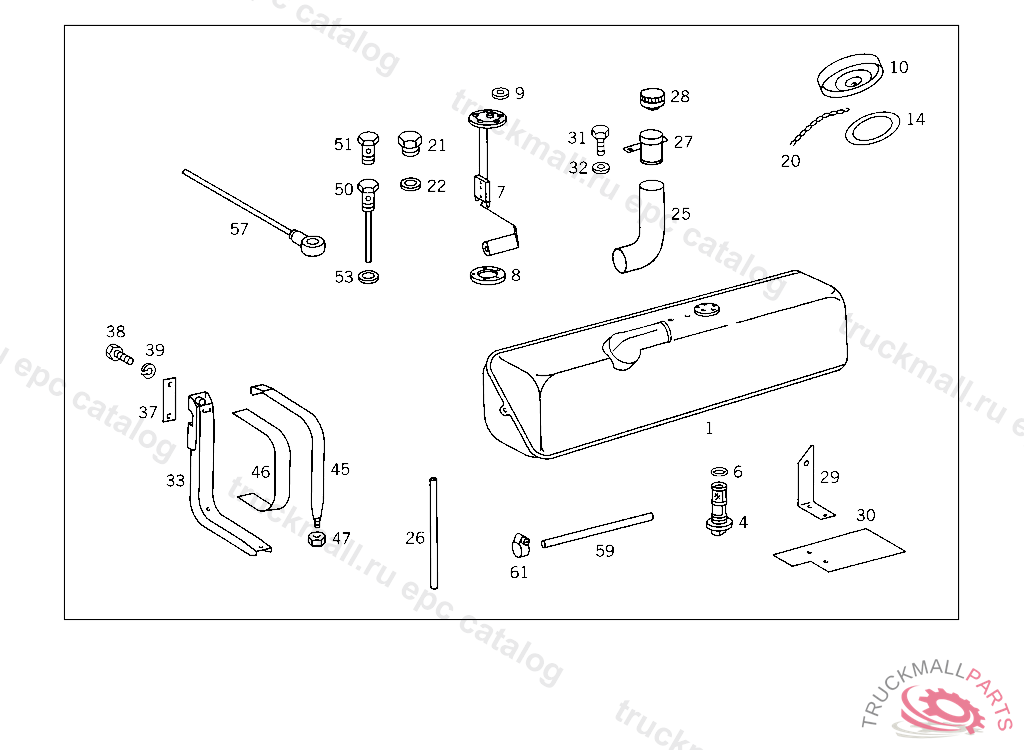

1
FUEL TANK , Replaced By: A3094702801
1
FUEL TANK , 147164
1
FUEL TANK
1
FUEL TANK , 147165
1
FUEL TANK
1
FUEL TANK
4
FUEL STRAINER , 703022
4
FUEL STRAINER FUEL TANK
4
FUEL STRAINER AT TANK
6
SEAL RING FUEL STRAINER SCREEN
7
SENDER UNIT FUEL TANK
8
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
8
GASKET SENDER UNIT AND COVER TO FUEL TANK
9
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
10
FILLER CAP
14
SEAL RING
20
CHAIN FILLER CAP
21
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
22
SEAL RING CONNECTION: 1,4 719029
25
HOSE , 147165
25
HOSE FUEL TANK
26
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
26
PLASTIC TUBE , Replaced By: A0089975482
27
FILLER NECK FUEL TANK, 147165
27
FILLER NECK FUEL TANK, 147164
28
FILLER CAP FUEL TANK
29
BRACKET , Replaced By: A6204750340
29
BRACKET PROTECTIVE PLATE
30
COVERING FILLER NECK
31
SCREW , Replaced By: N304017008016
31
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
33
SUPPORT CONSOLE TO SIDE MEMBER
33
SUPPORT CONSOLE TO SIDE MEMBER
37
SHIM SUPPORT TO SIDE MEMBER
38
SCREW , Replaced By: N304017010002
38
SCREW BRACKET TO SIDE MEMBER
39
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
45
STRAP FUEL TANK TO SUPPORT
46
RUBBER STRIP SUPPORT TO SIDE MEMBER
47
NUT BRACKET TO SUPPORT AND TO END PIECE
50
RISING PIPE , PRIOR TO INSTALLATION,SHORTEN RISING PIPE TO 323 MM IN LENGTH
51
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
53
SEAL RING CONNECTION: 1,4 719029
57
LINE FROM FUEL TANK TO "T" CONNECTION FITTING
59
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
61
CLAMP , Replaced By: N000000000665
61
CLAMP , Replaced By: N916017011001
61
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
CLAMP FROM VENT PIPE TO FILLER NECK
999
UNION NUT
999
SEAL CONEB6
999
NUT OIL TANK TO BRACKET
999
NUT , Replaced By: N913002006009
999
CLAMP , 009094
999
SCREW LICENSE PLATE TO BRACKET
999
HOSE FROM TANK TO FITTING, ORDER BY THE METER
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW , Replaced By: N304017006020
999
WASHER , Replaced By: A3049970340
999
LINE , Replaced By: A3404706165, +001N915008006402
999
LINE WITH FITTING 3000 MM
999
LINE FROM FUEL TANK TO "T" CONNECTION FITTING,303382
999
BOOT , Replaced By: A1119900340, +001N000933008153
999
FUEL TANK
999
FUEL TANK
999
HOSE , Replaced By: A0089975582
999
WASHER
999
LINE , Replaced By: A3094702665, +001A0004295235, +001A3404705665, +002A0009971190, +001N915001006002
999
LINE , Replaced By: A3094702665, +001A0004295235, +001A3404705665, +002A0009971190, +001N915001006002
999
LINE ORDER BY THE METER 2000 MM
999
SEAL RING FILLER CAP
999
SHIM CONSOLE TO SIDE MEMBER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 245436
999
WASHER ,303382
999
SPACER TUBE , 000917, Replaced By: A3094710153, +001N000125013008, +001N000933008150
999
LINE ,176361, Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
999
LINE ,176361, Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
999
LINE ,176361-303382, Replaced By: A3104282301, +001A0004290801, +001A0004295235, +001A1809900066, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004295235, +001A3404705665, +002A0009971190, +001N915001006002
999
LINE ,176360, Replaced By: A3094702665, +001A3104282301, +001A0004295235, +001A1809900066, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004295235, +001A3404706165, +002A0009971190
999
LINE ,176360, Replaced By: A3094702665, +001A3104282301, +001A0004295235, +001A1809900066, +002A0009971190
999
LINE , FOR TRUCKS UP TO CHASSIS 176360,FOR BUS UP TO CHASSIS 026054, Replaced By: A3094702665, +001A3104282301, +001A0004295235, +001A1809900066, +002A0009971190
999
FUEL TANK , Replaced By: A3094705401
999
LINE , Replaced By: A3094702665, +001A0004295235, +001A3404706165, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
999
FUEL TANK , Replaced By: A3094702401
999
LINE
999
FUEL TANK
999
LINE
999
SUPPORT ,349454, Replaced By: A3094703242, +001A1089900340, +001N009021008205
999
FUEL TANK ,303382
999
FUEL TANK , Replaced By: A3094701801
999
SUPPORT FUEL TANK TO FRAME
999
FUEL TANK , Replaced By: A3094703001
999
LINE
999
FUEL TANK , Replaced By: A3144702601
999
LINE
999
SUPPORT , Replaced By: A3094701842
999
LINE
999
RISING PIPE , Replaced By: A3094700126
999
FUEL TANK
999
FUEL TANK
999
SUPPORT TANK SUSPENSION
999
LINE , Replaced By: A3104282301
999
FILLER CAP , Replaced By: A3094700005
999
UNION SCREW ,B 688751
999
GASKET
999
FILLER CAP , Replaced By: A0004715130
999
FILLER CAP , Replaced By: A0004715130
999
LOOM TIE , Replaced By: N916017011000
999
FILLER CAP , Replaced By: A0004715130
999
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
