Поз.
Артикул
Описание

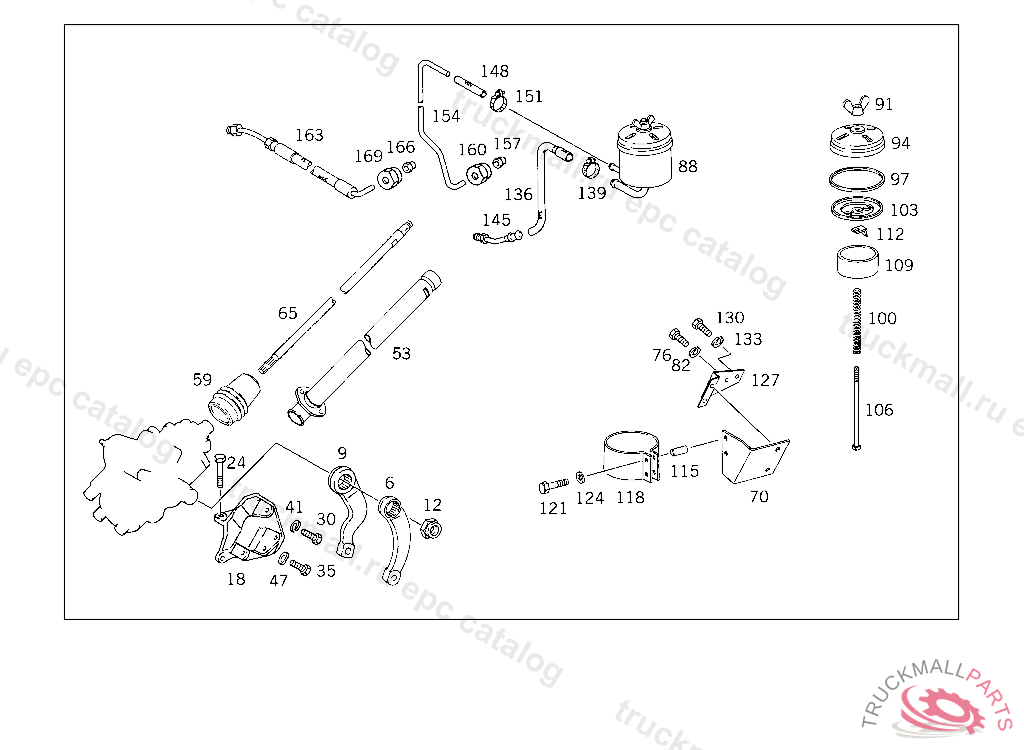

6
PITMAN ARM STEERING
9
PITMAN ARM
12
NUT DRAG LINK TO LEVER
18
STEERING SUPPORT
18
STEERING SUPPORT
24
SCREW BRACKET TO FRAME SIDE MEMBER
24
SCREW RADIATOR M 10X45
30
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
35
SCREWM 12X13X21X38
41
LOCK WASHER FITTING TO BRACKET
47
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
53
STEER. COLUMN JACKET TUBE STEERING SHAFT,470111
53
STEER. COLUMN JACKET TUBE STEERING SHAFT,470112556499
59
BOOT STEERING GEAR TO STEERING BRACKET,268538
65
STEERING SHAFT ,370112
65
STEERING SHAFT ,470112
65
STEERING SHAFT STEERING,470111
65
STEERING SHAFT ,370112
65
STEERING SHAFT STEERING,470112
70
BRACKET OIL TANK
76
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
76
SCREW PIPE CLAMP
76
SCREW , Replaced By: N304017008021
76
SCREW , Replaced By: N304017008016
82
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
88
OIL TANK STEERING, ON TRUCKS,FROM CHASSIS 145137 ALSO INSTALLED ON:SEE FOOTNOTE 023,WITH THE EXCEPTION OF:SEE FOOTNOTE 022,CONTINUED ON FOOTNOTE 026
88
OIL TANK STEERING
91
NUT BATTERY MOUNTING
94
COVER
97
GASKET
100
SPRINGMANN
103
WASHER
106
SCREW APPARATUS PLATE M 6X150
106
SCREW
109
FILTER
112
LOCK
115
SPACER TUBE OIL TANK TO BRACKET
118
CLAMP OIL TANK TO BRACKET
121
SCREW DISTRIBUTOR TO CAB
121
SCREW OIL TANK TO BRACKET,556500
121
SCREW , Replaced By: N000933006151
124
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
127
BRACKET IGNITION COIL,556499
130
SCREW , Replaced By: N304017006020
130
SCREW , Replaced By: N304017008039
130
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
130
SCREW LICENSE PLATE TO BRACKET
133
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
136
HOSE OIL-TANK-TO-HYDRAULIC-PUMP HYDRAULIC LINE,556500
136
HOSE OIL-TANK-TO-HYDRAULIC-PUMP HYDRAULIC LINE,556499
136
HOSE OIL-TANK-TO-HYDRAULIC-PUMP HYDRAULIC LINE,556500
139
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
139
CLAMP , Replaced By: N000000000667
145
LINE FROM STEERING TO OIL TANK
148
HOSE FROM STEERING GEAR TO OIL TANK
151
CLAMP HOSE TO FITTING AND TO OIL TANK
151
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
154
LINE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 360291, Replaced By: A3094662465
154
LINE , Replaced By: A6094662965
154
LINE FROM STEERING GEAR TO OIL TANK,556499
154
LINE FROM STEERING GEAR TO OIL TANK,556500
157
SEAL CONE LINE CONNECTION
157
GLAND , Replaced By: A0019901967
160
UNION NUT LINE CONNECTION, Replaced By: N000000006239
160
UNION NUT LINE CONNECTION
163
HOSE FROM PUMP TO STEERING,556499
163
HOSE FROM PUMP TO STEERING,556499
163
HOSE FROM PUMP TO STEERING,556500
163
HOSE FROM PUMP TO STEERING,556500
166
CUTTING RING. GLAND LINE CONNECTION
169
NUT. UNION NUT LINE CONNECTION
999
BRACKET IGNITION COIL,556500
999
LINE OIL-TANK-TO-HYDRAULIC-PUMP HYDRAULIC LINE,360291
999
LINE OIL-TANK-TO-HYDRAULIC-PUMP HYDRAULIC LINE,556500
999
STEERING BRACKET ,163202
999
STEER. COLUMN JACKET TUBE
999
STEERING SHAFT ,798486
999
PITMAN ARM ,163202
999
LINE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 360291, Replaced By: A3094662465
999
CLAMP BRANCH-OFF TO HEADLAMPS
999
WASHER LICENSE PLATE LIGHTING
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
