33 FRONT AXLE

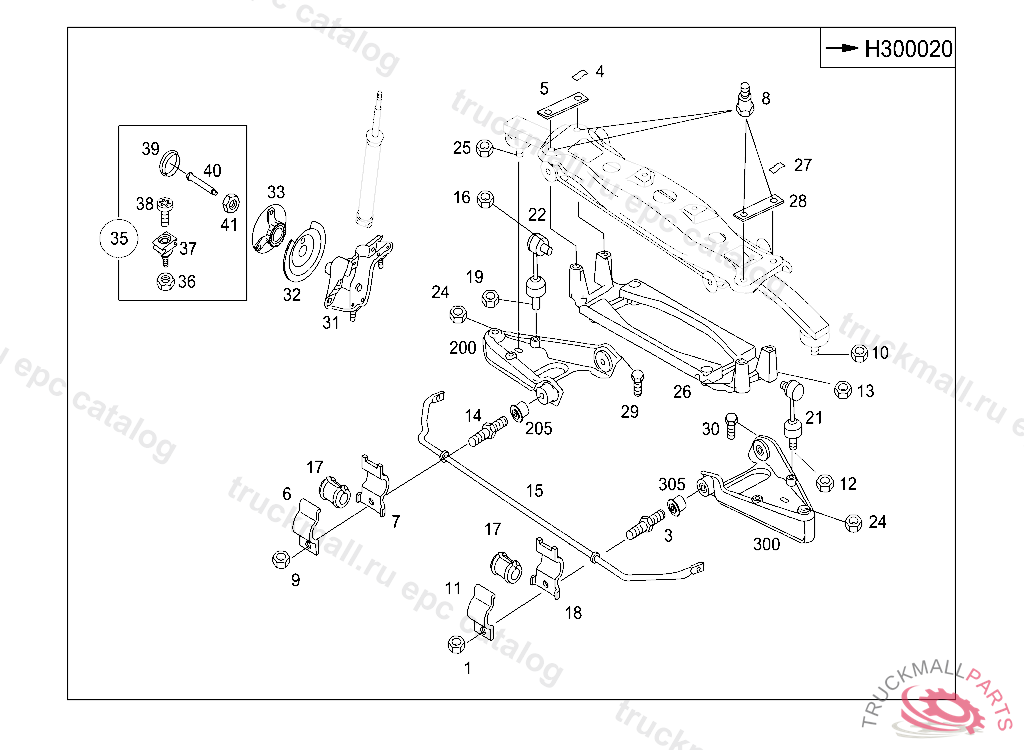

225 TRANSVERSE CONTROL ARM,TOROSION BAR AND FRONT SUBFRAME IL. 1

Mercedes Q0005105V004000000 - BEUGEL VOOR

SMART & PURE CDI 450.301

33 FRONT AXLE - 225 TRANSVERSE CONTROL ARM,TOROSION BAR AND FRONT SUBFRAME IL. 1

Поз.
Артикул
Описание
1
Q0002301V000000000
NUT MB STANDARD 13023 M12 , Replaced By: N913023012002
3
Q0004173V003000000
SPECIAL SCREW WITH SHANK
6
Q0005105V004000000
CLIP FRONT
7
Q0004170V003000000
CLIP REAR
8
Q0002504V004000000
SPECIAL SCREW WITH SHANK , H 10000419991115
9
Q0002301V000000000
NUT MB STANDARD 13023 M12 , Replaced By: N913023012002
10
Q0002297V000000000
NUT
11
Q0005105V004000000
CLIP FRONT
12
Q0002298V000000000
NUT M10 -10
13
Q0002298V000000000
NUT M10 -10
14
Q0004173V003000000
SPECIAL SCREW WITH SHANK
16
Q0002298V000000000
NUT M10 -10
17
Q0004883V006000000
RUBBER MOUNT
18
Q0004170V003000000
CLIP REAR
19
Q0002298V000000000
NUT M10 -10
21
Q0005102V005000000
STABILISER HANGER
22
Q0005102V005000000
STABILISER HANGER
24
Q0006662V000000000
NUT M12 X 1.5 -8 AT JOINT FLANGE
25
Q0002297V000000000
NUT
29
Q0004445V000000000
TORX BOLTM12X1,5X60
30
Q0004445V000000000
TORX BOLTM12X1,5X60
31
Q0004880V003000000
PIVOT BEARING LH LEFT
31
Q0004879V003000000
RIGHT SWIVEL BEARING RIGHT
32
Q0003855V006000000
SPLASH GUARD
33
Q0001870V023000000
WHEEL BEARING HUB UNIT 3 LEFT
35
Q0015642V002000000
SUPPORTING ARM LEFT AND RIGHT PARTS KIT
36
Q0002297V000000000
NUT
37
Q0014224V002000000
CARRIER LINK RIGHT
38
Q0004485V004000000
SPECIAL SCREW WITH SHANK
39
Q0002430V006000000
DUST CAP WHEEL BEARING FR
40
Q0001906V005000000
SPECIAL SCREW WITH SHANK
41
Q0002299V000000000
NUT M12 X 1.5 -8
200
Q0007001V004000000
WISHBONE COMPLETE RIGHT, H 30002020010108
205
A4503330014
WISHBONE BUSHING RIGHT
300
Q0007001V004000000
WISHBONE COMPLETE RIGHT, H 30002020010108
305
A4503330014
WISHBONE BUSHING RIGHT
