Mercedes Q0002799V005000000 -

SMART & PASSION CDI 450.303

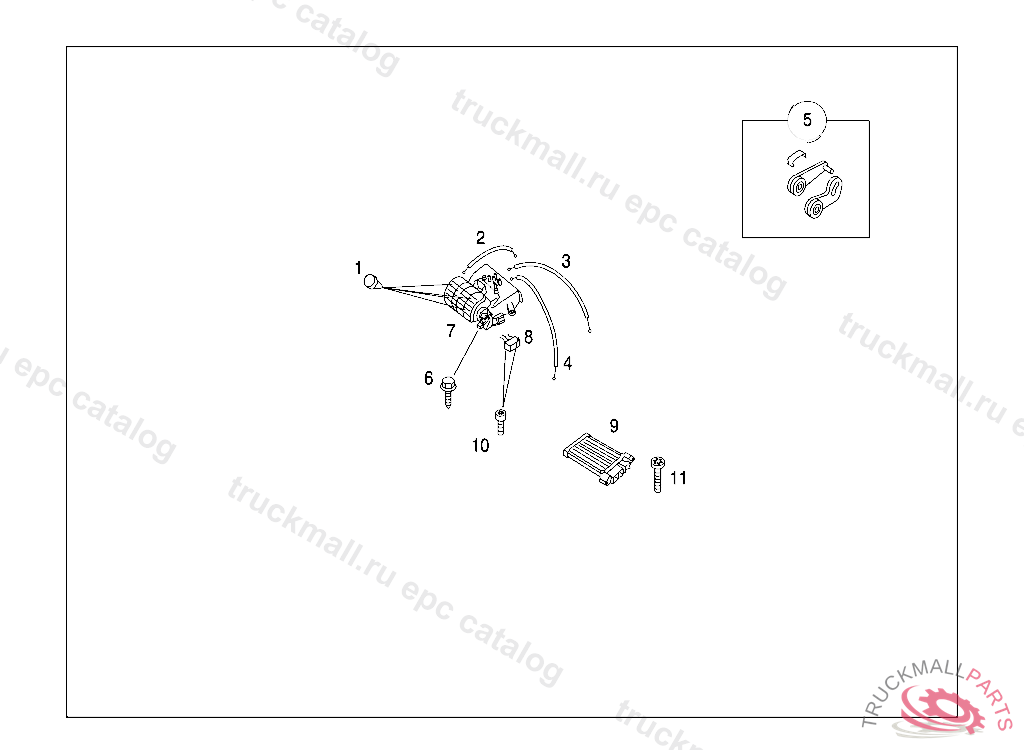

83 HEATING AND VENTILATION - 135 OPERATING UNIT

Поз.
Артикул
Описание
1
Q0002800V003000000
SLIDING KNOB
2
Q0002793V006000000
CONTROL CABLE RECIRC AIR LENGTH: 765 MM, Replaced By: Q0002793V007000000
2
Q0008263V002000000
CONTROL CABLE RECIRC AIR
3
Q0007297V001000000
CONTROL CABLE HEATING SYS LENGTH: 570 MM
4
Q0002799V005000000
CONTROL CABLE AIR DISTRIB LENGTH: 445 MM, Replaced By: Q0002799V006000000
5
Q0004158V001000000
LEVER AND SMALL PARTS SET
6
A0059903712
BOLT FASTENER, CENTER NOZZLE AT CENTER CONSOLE REINFORCEMENT
7
A4508200097
OPERATING UNIT HEATING/VENTILATION
8
Q0005797V002000000
SWITCH PTC
9
Q0005761V002000000
PTC HEATER
10
Q0007435V000000000
SCREW PT K 22 X 12
11
Q0007659V000000000
SELF-TAPPING SCREW SUPADR
