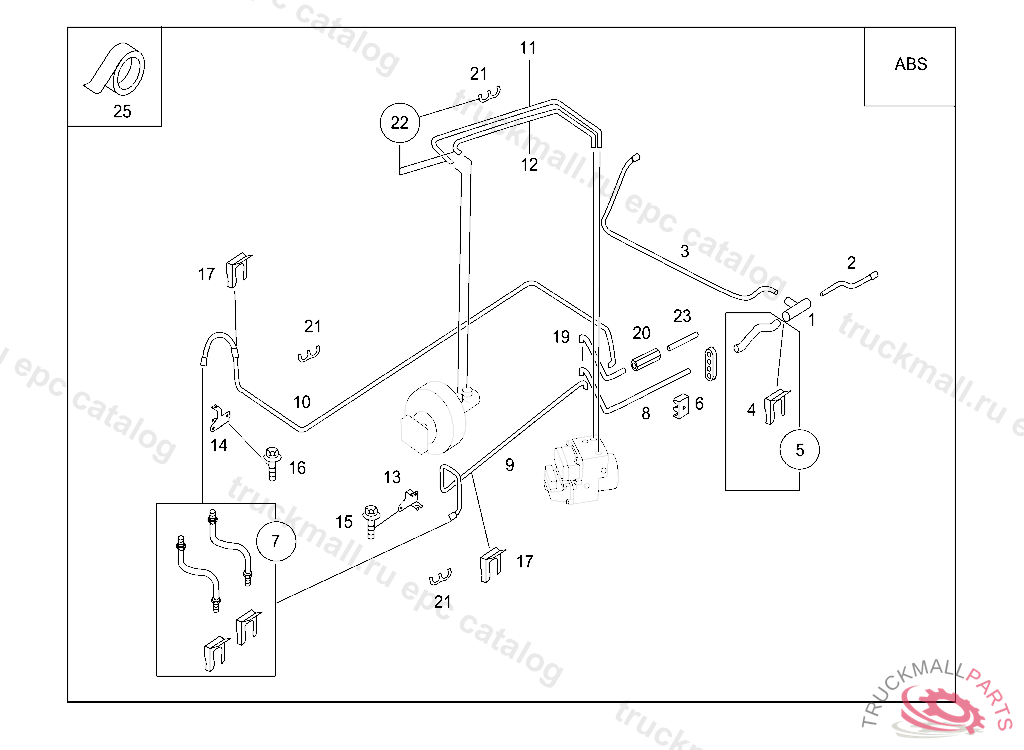

Поз.
Артикул
Описание
1
TANK RECESS
2
BRAKE PIPE REAR AXLE LH ( LEFT, J 00000020030103
3
BRAKE PIPE REAR AXLE RH RIGHT, J 00000020030103
5
BRAKE HOSE REAR AXLE
6
HOLDER BL SS SILL
6
HOLDER BL, VACUUM PIPE HI , H 99999820030103 J 00000020030103
7
BRAKE HOSE FRONT AXLE PARTS KIT
9
BRAKE PIPE FRONT AXLE LH LEFT, J 00000020030103
10
BRAKE PIPE FRONT AXLE RH RIGHT, H 37881520010903 J 00000020030103
11
BRAKE PIPE TANDEM MASTER CONNECTOR M 10, 00881420010625
11
BRAKE PIPE, ABS TO TANDEM CONNECTOR M 10, 00881520010625
12
BRAKE PIPE, ABS TO TANDEM CONNECTOR M 10, 00881520010625
12
BRAKE PIPE TANDEM MASTER CONNECTOR M 10, 00881420010625
13
HOLDER WHEELHOUSE LH LEFT
14
HOLDER WHEELHOUSE RH
15
SCREW TORX M7 X 23
16
SCREW TORX M7 X 23
17
FUSE BRAKE LINE TO BRAKE HOSE FRONT
17
CLIP SPRING
19
BRAKE PIPE, ABS PRESSURE ORDER ADDITIONALLY: Q 0010018V001000000
20
PRESSURE REDUCER
21
HOLDER BL SS FIXED
21
LINE HOLDER ON SUSPENSION STRUT CONSOLE
22
BRAKE PIPE TANDEM BRAKE M CONNECTOR M 12
22
BRAKE PIPE TANDEM BRAKE M CONNECTOR M 12
23
BRAKE PIPE, REAR AXLE PRE ORDER ADDITIONALLY: Q 0010015V002000000
999
SEALING STRIP
