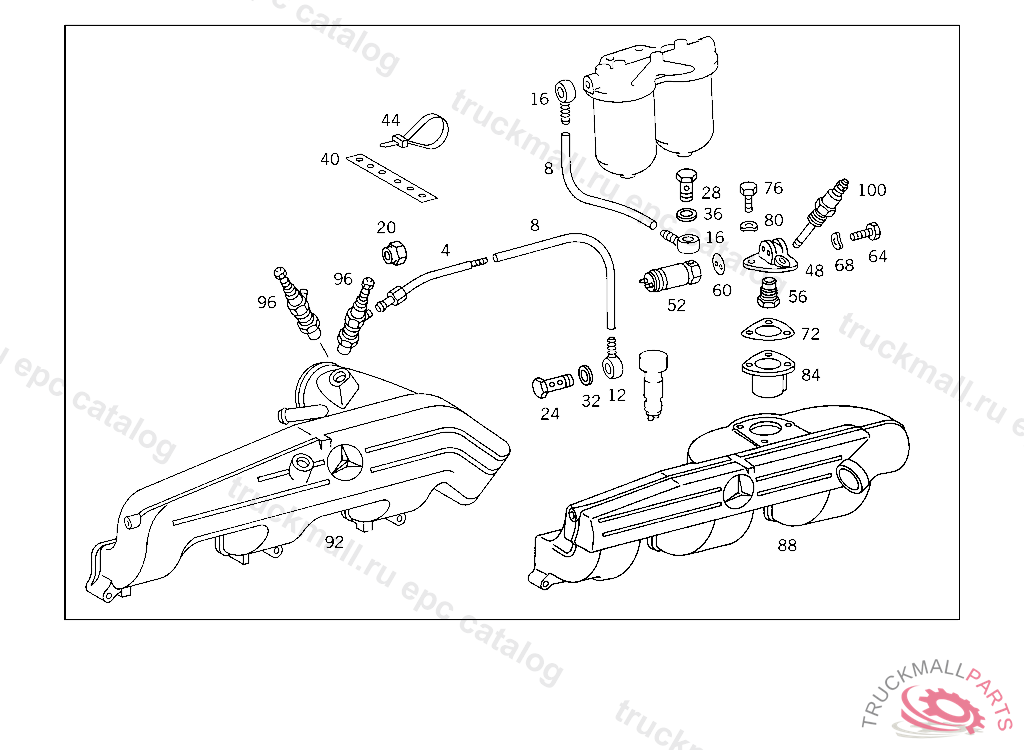

Поз.
Артикул
Описание
4
LINE FROM SOLENOID VALVE TO HEATER PLUG
8
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
PLASTIC PIPE RISING PIPE 4X6 MM
12
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
16
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM,5 999999K 040105
20
UNION NUT BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
24
HOLLOW SCREW LINE CONNECTION
28
HOLLOW SCREW FUEL LINES TO SOLENOID VALVE
32
SEAL RING PNEUMATIC VALVE
36
SEAL RING SCREW PLUG
40
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
44
LOOM TIE LINE MOUNTING 280 MM
48
BRACKET NOZZLE HOLDER
48
BRACKET NOZZLE HOLDER, Replaced By: A5410700840
52
VALVE (ELECTROMAGNET VALVE)
56
NOZZLE FLAME STARTING SYSTEM
60
SEAL ELECTROMAGNET VALVE
64
SCREW CONNECTOR
68
SPRING WASHER LICENSE PLATE TO BRACKET
72
SEAL TO LOCK THE BORE MEANT FOR FLAME START SYSTEM
76
SCREW , Replaced By: N304017008021
76
SCREW PIPE CLAMP
80
SPRING WASHER , Replaced By: N000137008212
80
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
84
BURNER
84
BURNER , Replaced By: A5420700086
88
MANIFOLD (CHARGING AIR ELBOW)
88
MANIFOLD (CHARGING AIR ELBOW)
92
INTAKE MANIFOLD
92
INTAKE MANIFOLD
96
GLOW PLUG
96
GLOW PLUG , Replaced By: A9061590101
100
HEATER PLUG
999
BRACKET
