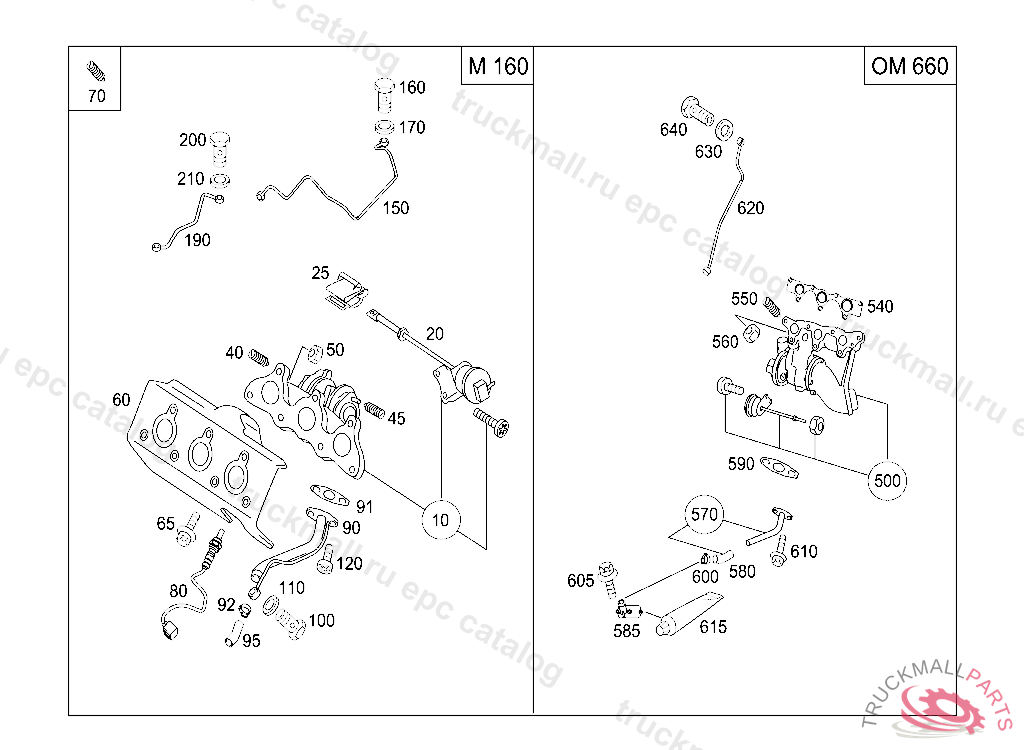

Поз.
Артикул
Описание
10
TURBOCHARGER , H 18287520000911 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
TURBOCHARGER , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
EXHAUST GAS TURBOCHARGER , Replaced By: A1600960999
20
DIAPHRAGM POT WASTE GATE
25
RETAINING CLIP
40
STUDM7 X 52
40
STUDM6 X 35 - 10.9
40
STUDM7 X 44
45
STUD
50
HEXAGON NUT SCREENING PLATE TO TURBOCHARGER M6
50
NUT EXHAUST MANIFOLD TO CYLINDER HEAD, F 22053020061130
60
SHIELD MANIFOLD SCREENING PLATE TO EXHAUST MANIFOLD
60
SCREENING PLATE
65
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
70
RUBBER GROMMET
80
LAMBDA PROBE DAIMLERCHRYSLER PLANT BERLIN
90
OIL SUPPLY PIPE
91
GASKET
92
LOOM TIE19/9MM
95
CONNECTOR
100
SCREW HOLLOW M8 X 1 A 4/5
110
SEAL RING SCREW PLUG
110
SEALING RING A 8 - 11.5 C , 19970613, Replaced By: N007603008109
120
COLLAR SCREWTORX M6 X 12 L - 8.8
150
COOLANT PIPE WATER PUMP TO TURBOCHARGER
160
SCREW HOLLOW M8 X 1 A 4/5
170
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
190
COOLANT PIPE TURBOCHARGER TO CRANKCASE (ENGINE)
190
COOLANT PIPE TURBOCHARGER TO CRANKCASE (ENGINE)
200
SCREW HOLLOW M8 X 1 A 4/5
210
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
500
TURBOCHARGER , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
540
GASKET
550
STUD EXHAUST MANIFOLD TO CYLINDER HEAD
560
HEXAGON NUT SCREENING PLATE,5 163561
570
OIL LINE RETURN LINE
580
MOLDED HOSE AT TURBOCHARGER OIL LINE
585
COVER OIL RETURN
590
GASKET TO TURBOCHARGER
605
HEXALOBULAR BOLT. SCREW WIRING HARNESS ON OIL FILTER HOUSING
610
HEXALOBULAR BOLT. SCREW POSITION SENDER UNIT TO CYLINDER CRANKCASE M 6X16
615
SEALANT TIMING CASE TO CYLINDER CRANKCASE
620
OIL LINE FEED LINE
630
SEAL RING PNEUMATIC VALVE
640
HOLLOW SCREW LINE CONNECTION
