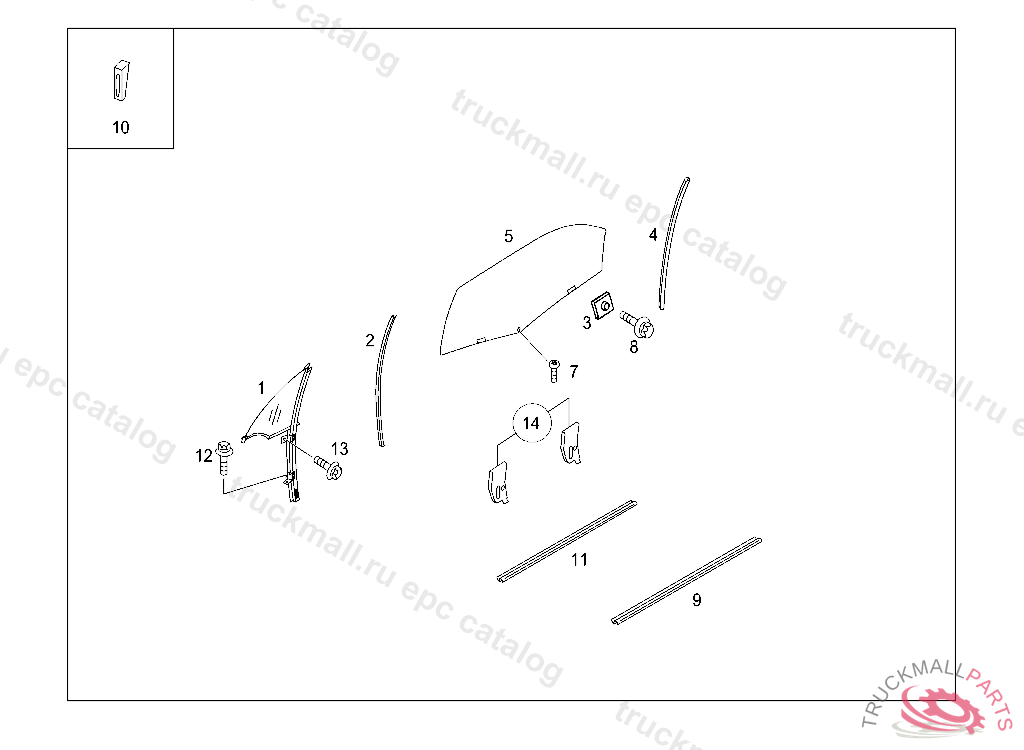

Поз.
Артикул
Описание
1
QUARTERLIGHT RH GREEN LEFT
1
QUARTERLIGHT RH GREEN RIGHT
2
SEAL QUARTERLIGHT LEFT,FIXED WINDOW
3
STOP WINDOW WINDER LEFT
4
SEAL ROLL-DOWN WINDOW FRO LEFT
5
ROLL-DOWN WINDOW LH GREEN LEFT
5
ROLL-DOWN WINDOW LH GREEN RIGHT
7
SCREW FEMALE TORX M5 X 25 WINDOW REGULATOR,LEFT
8
PANHEAD SCREW M5 X 33 FASTENING, RIGHT END STOP
9
SEAL ROLL-DOWN WINDOW FRO FOR LEFT WINDOW, INSIDE
10
ADJUSTMENT WEDGE WINDOW RUN,RIGHT
11
SEAL ROLL-DOWN WINDOW FRO FOR RIGHT WINDOW, OUTSIDE
11
SEAL ROLL-DOWN WINDOW FRO FOR LEFT WINDOW, OUTSIDE
12
FLANGE SCREW TORX M6 X 20 QUARTER WINDOW TO DOOR FRAME AT LEFT
13
FLANGE SCREW TORX M6 X 20 QUARTER WINDOW TO DOOR FRAME AT LEFT
14
STOP PLATE ROLL-DOWN WIND RIGHT
