Mercedes A1600180312 - ТРУБКА

SMART CABRIO BRABUS 450.433

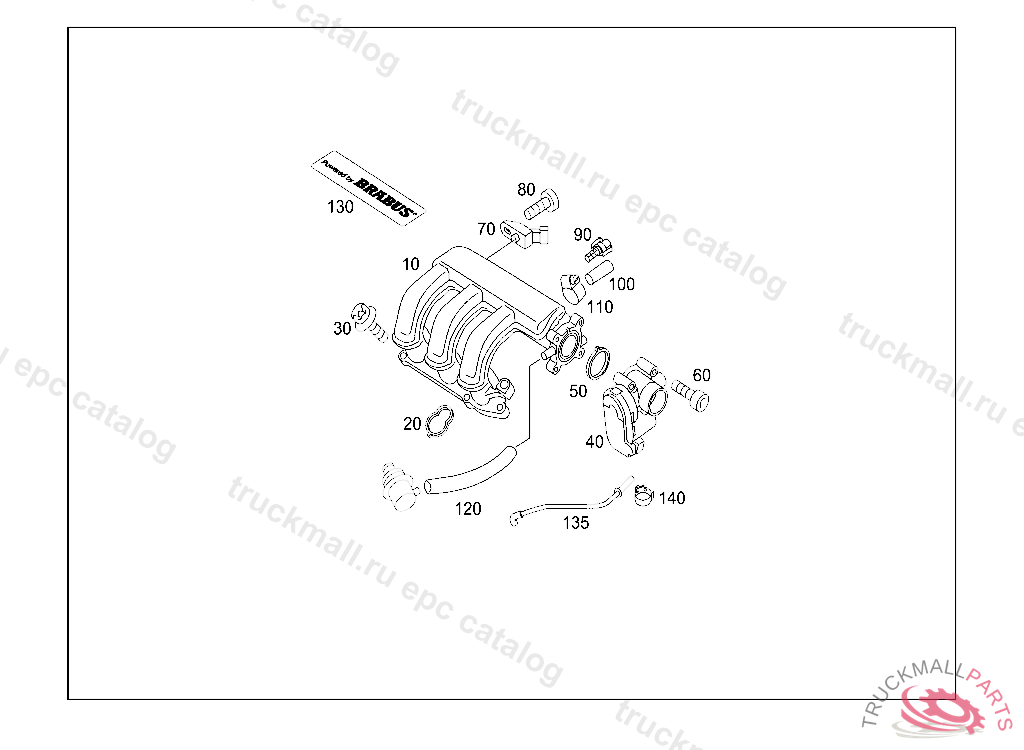

14 INTAKE AND EXHAUST MANIFOLDS - 030 INTAKE MANIFOLD IL. 1

Поз.
Артикул
Описание
10
Q0003253V008000000
INTAKE LINE SHORT
20
Q0003093V001000000
SEAL INTAKE LINE
30
N000000001119
HEXALOBULAR BOLT SHIELD AND PRESSURE SENSOR AND SPACER SLEEVE TO REAR BRACKET M6X33
40
Q0003094V007000000
ELECTRONIC THROTTLE ACTUA
50
Q0003095V002000000
SEAL ELECTRONIC THROTTLE
60
Q0003493V000000000
SCREW TORX M7 X 23M6 X 50
70
Q0003121V003000000
PRESSURE TRANSMITTER INTA
80
Q0003498V000000000
SCREW TORX M7 X 23 TO PRESSURE SENSOR M6 X 20
90
A0005422818
TEMPERATURE SENSOR. SENDER UNIT , Replaced By: A0061532028
100
Q0010197V001000000
STOP PLUG
110
Q0001907V000000000
CLIP CLIC 55-80
120
Q0003098V005000000
VACUUM LINE FROM PRESSURE REGULATOR TO INTAKE PIPE
130
Q0014736V001000000
SMART-BRABUS PLATE
135
Q0018484V002000000
BREATHER PIPE PART THROTT
135
A1600180312
BREATHER LINE PARTIAL LOAD VENTILATION, WITH CHECK VALVE
135
A1600180612
VENTILATION LINE
135
Q0003134V008000000
BREATHER PIPE PART THROTT PART-LOAD BREATHING, Replaced By: A1600180312
140
Q0002587V000000000
CLIP CLIC 86-145
