Главная
›
Mercedes
›
SMART
›
SMART CABRIO & PURE
›
450.441
›
32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM
›

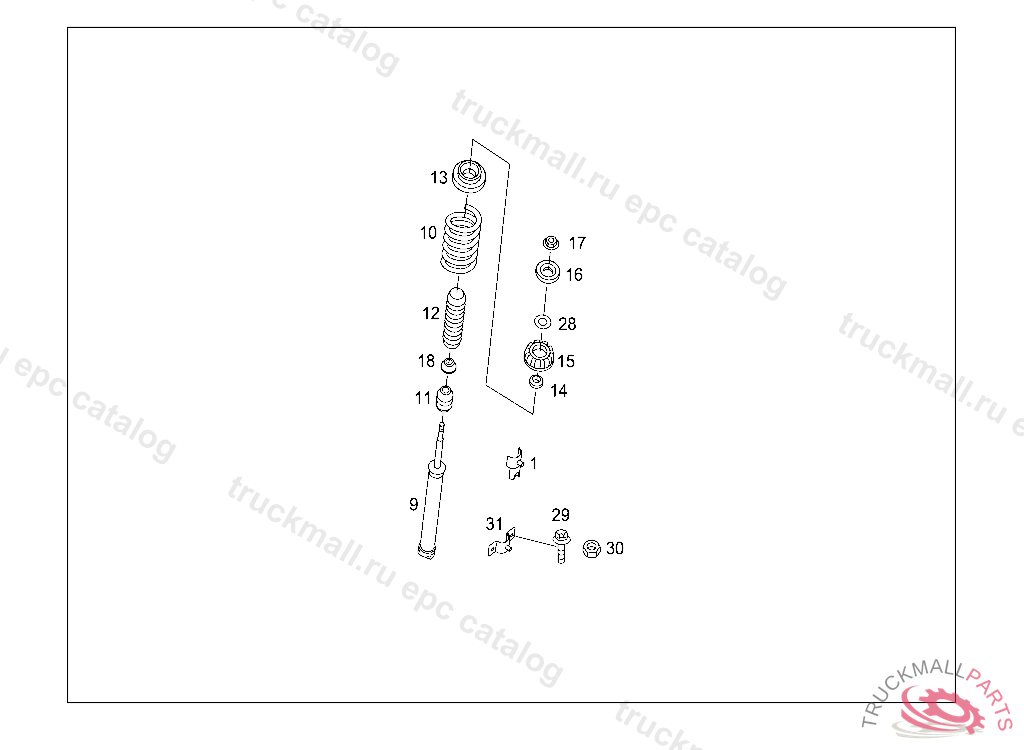

054 SPRING STRUT AND SPRING STRUT MOUNTING FRONT IL. 1
Mercedes A4503220028 - Опора-стойки-амортизатора
SMART CABRIO & PURE 450.441
32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 054 SPRING STRUT AND SPRING STRUT MOUNTING FRONT IL. 1
Поз.
Артикул
Описание
1
Q0005900V001000000
HOLDER SPEED SENSOR DAMPE
9
Q0013997V001000000
SHOCK ABSORBER FRONT SET2 PIECES
9
Q0008598V004000000
SHOCK ABSORBER COMPLETE , H 30002120010108
10
Q0009249V002000000
SPRING
10
Q0013994V001000000
SPORTS SPRING FRONT
11
Q0006861V003000000
AUXILIARY SPRING , J 00000020030103
12
Q0006862V003000000
DUST COVER DAMPER , Replaced By: Q0006862V004000000
13
Q0006651V004000000
SPRING COLLAR TOP , Replaced By: A4503220015
13
A4503220015
SPRING CASE
14
A4503300051
ANTI-FRICTION BEARING SPRING TO VIBRATION DAMPER
15
A4513220028
PAD
15
Q0008236V003000000
TOP BEARING , Replaced By: Q0008236V004000000
15
A4503220028
SPRING CUP INSERT LEFT
16
Q0006697V004000000
PULL STOP
17
N000000003277
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
28
A0029908550
NUT SPRING TO VIBRATION DAMPER
28
Q0006870V001000000
SPECIAL NUT
29
Q0002324V000000000
TORX SCREW M6 X 20 - 8.8M10 X 25 - 10.9
30
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
31
Q0002113V011000000
MOUNTING STRAP SHOCK ABSO
