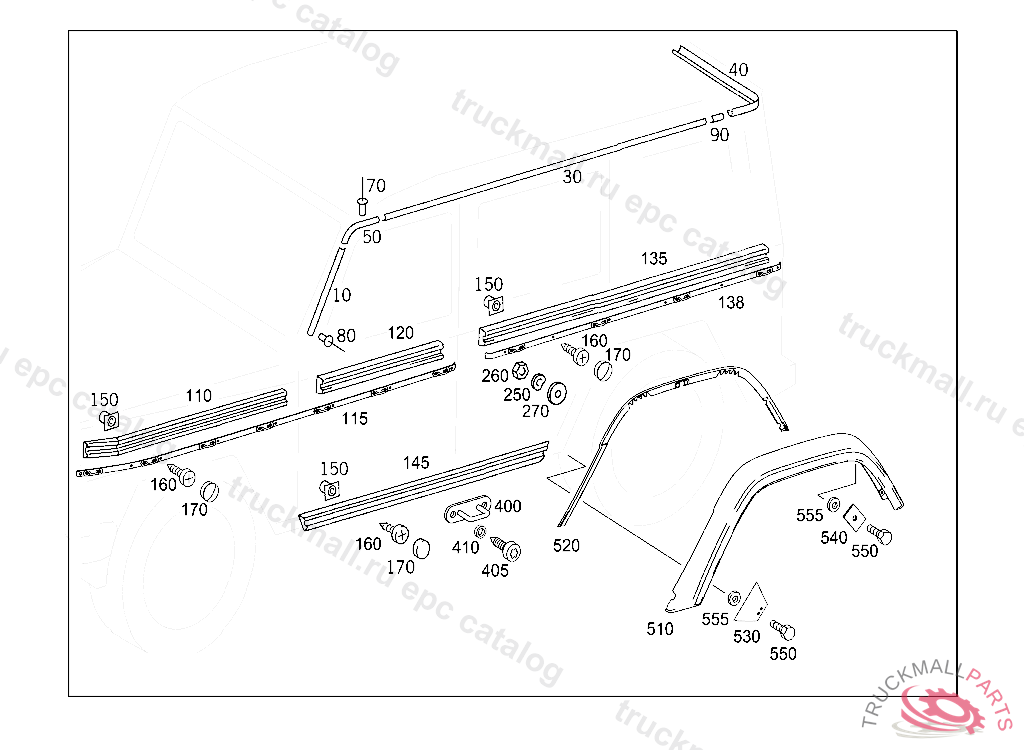

Поз.
Артикул
Описание
10
DRIP MOLDING ON WINDSHIELD,LATERAL RIGHT
10
DRIP MOLDING ON WINDSHIELD,LATERAL LEFT
10
DRIP MOLDING ON WINDSHIELD,LATERAL LEFT
10
DRIP MOLDING ON WINDSHIELD,LATERAL RIGHT
10
DRIP MOULDING ON WINDSHIELD,LATERAL LEFT, X 20877520130306
10
DRIP MOULDING ON WINDSHIELD,LATERAL LEFT, TO BE ADAPTED DURING ASSEMBLY
10
DRIP MOULDING ON WINDSHIELD,LATERAL RIGHT, X 17366920071106
10
COVER ON WINDSHIELD,LATERAL LEFT
10
COVER A-PILLAR,RIGHT
30
DRIP MOLDING LEFT SIDE ROOF RAIL
30
DRIP MOULDING LATERAL TOP LEFT AND RIGHT
30
DRIP MOLDING ROOF SIDE RAIL
30
DRIP MOLDING RIGHT SIDE ROOF RAIL
40
DRIP MOULDING ROOF REAR CORNER PIECE,RIGHT
40
DRIP MOULDING ROOF REAR CORNER PIECE,LEFT
50
PANEL LEFT CORNER PIECE, 20130306
50
PANEL RIGHT CORNER PIECE, 20130306
50
MOLDING RIGHT
50
MOLDING LEFT CORNER PIECE, 20130306 7167QFT463A0505 DEEP GREY
70
RIVET
80
RIVET
90
DRIP MOULDING ROOF
110
PROTECTIVE STRIP CARRIER ON FENDER LEFT, X 18847720110114 9051QFT461A3010 BLACK
110
PROTECTIVE STRIP CARRIER ON FENDER LEFT
110
PROTECTIVE STRIP CARRIER ON FENDER LEFT
110
PROTECTIVE STRIP CARRIER ON FENDER LEFT
110
PROTECTIVE STRIP CARRIER ON FENDER RIGHT
110
PROTECTIVE STRIP CARRIER ON FENDER RIGHT
110
PROTECTIVE STRIP CARRIER ON FENDER RIGHT
110
PROTECTIVE STRIP CARRIER ON FENDER RIGHT
115
BRACKET FRONT RIGHT
120
PROTECTIVE STRIP PROTECTIVE TRIM ON DRIVER DOOR, RIGHT, TO BE ADAPTED DURING ASSEMBLY 9051QFT461A3010 BLACK
120
PROTECTIVE STRIP
135
COVER STRIP REAR LEFT
138
BRACKET REAR LEFT AND RIGHT
145
PROTECTIVE STRIP (PROTECTIVE STRIP) BOTTOM RIGHT,SIDE MEMBER,OUTSIDE
145
PROTECTIVE STRIP (PROTECTIVE STRIP) BOTTOM LEFT,SIDE MEMBER,OUTSIDE
145
PROTECTIVE STRIP
145
LEDGE (PROTECTIVE STRIP) BOTTOM LEFT,SIDE MEMBER,OUTSIDE
150
LOCK INTERIOR LAMP TO REAR PILLAR
160
TAPPING SCREW SIDE REFLECTORS,K 057592
160
TAPPING SCREW. SCREW4,2X38
160
SHEET METAL SCREW BRACKET TO SUPPORT
170
STOP PLUG
250
NUT IN CASE OF SUBSEQUENT INSTALLATION
260
NUT IN CASE OF SUBSEQUENT INSTALLATION
270
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
270
WASHER
400
TARPAULIN BOW BOTTOM OUTSIDE, 7167008 QFT461A3090 DEEP GREY
405
TAPPING SCREW LEFT 4.2X25
410
SPACER BUSH TARPAULIN BOW
510
FENDER WIDENING REAR RIGHT
510
PANELING REAR LEFT, X 15686520040630
510
PANELING REAR RIGHT
510
FENDER WIDENING REAR LEFT
520
SEAL LEFT REAR FENDER WIDENING
530
ANGLE LEFT REAR FENDER WIDENING
540
PLATE LEFT REAR FENDER WIDENING
550
HEXAGON HEAD BOLT. SCREW POWER CYLINDER TO BRACKET
550
SCREW FROM BACK-UP LAMP TO REAR CROSS MEMBER
555
LOCK WASHER BRACKET TO STEERING COLUMN END
555
WASHER BRACKET TO BATTERY CASE BRACKET
555
WASHER
