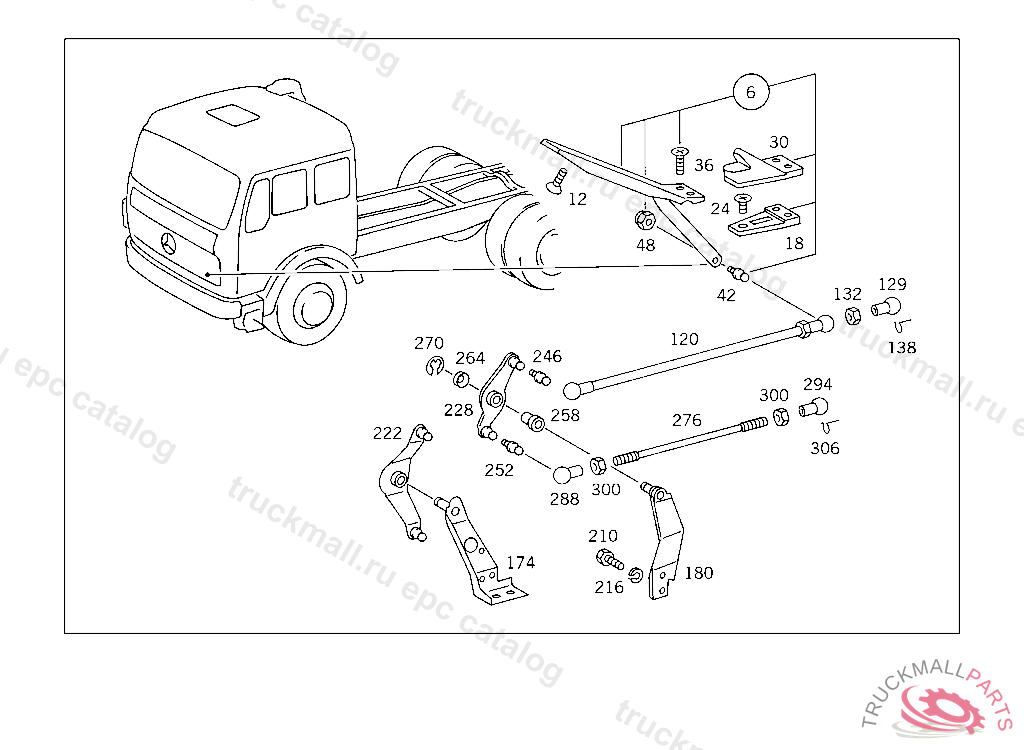

Поз.
Артикул
Описание
6
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
12
SCREW ACCELERATOR PEDAL
18
SHIM ACCELERATOR PEDAL
24
SCREW PEDAL TO CAB FLOOR
30
BOOT ACCELERATOR PEDAL
36
SCREW ACCELERATOR PEDAL TO CAB M 6X25
42
BALL PIVOT LOAD SENSOR
48
NUT PUMP TO BRACKET
48
NUT , Replaced By: N913004006001
120
ROD LOAD SENSOR CONTROL
129
BALL SOCKET PULL ROD TO LEVER
132
NUT BALL PIVOT TO LEVER
138
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
180
BEARING BRACKET ,5 324163, Replaced By: A6203000736, +002A6153010088
180
BEARING BRACKET INTERMEDIATE BEARING,5 324164
210
SCREW , Replaced By: N304017008034
210
SCREW BRACKET TO CROSS CONNECTION STRUT
216
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
228
LEVER INTERMEDIATE BEARING
228
LEVER ,5 370188 NEW DOUBLE LEVER TO BE INSTALLED WITH LOWER BALL HEAD POINTING AWAY FROM BRACKET, PULL ROD TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6203001328, +001N900331008421
246
BALL STUD. BALL PIVOT TOP B10X4,5 MM
252
BALL PIVOT BOTTOM B13X5 MM
258
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
264
COVERING INTERMEDIATE BEARING
270
LOCK PLATE INTERMEDIATE BEARING
276
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
288
BALL SOCKET ROD TO BALL PIVOT
294
BALL SOCKET ROD TO BALL PIVOT
300
NUT
306
SECURING CLIP. CIRCLIP
999
PAD ACCELERATOR PEDAL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
