Поз.
Артикул
Описание

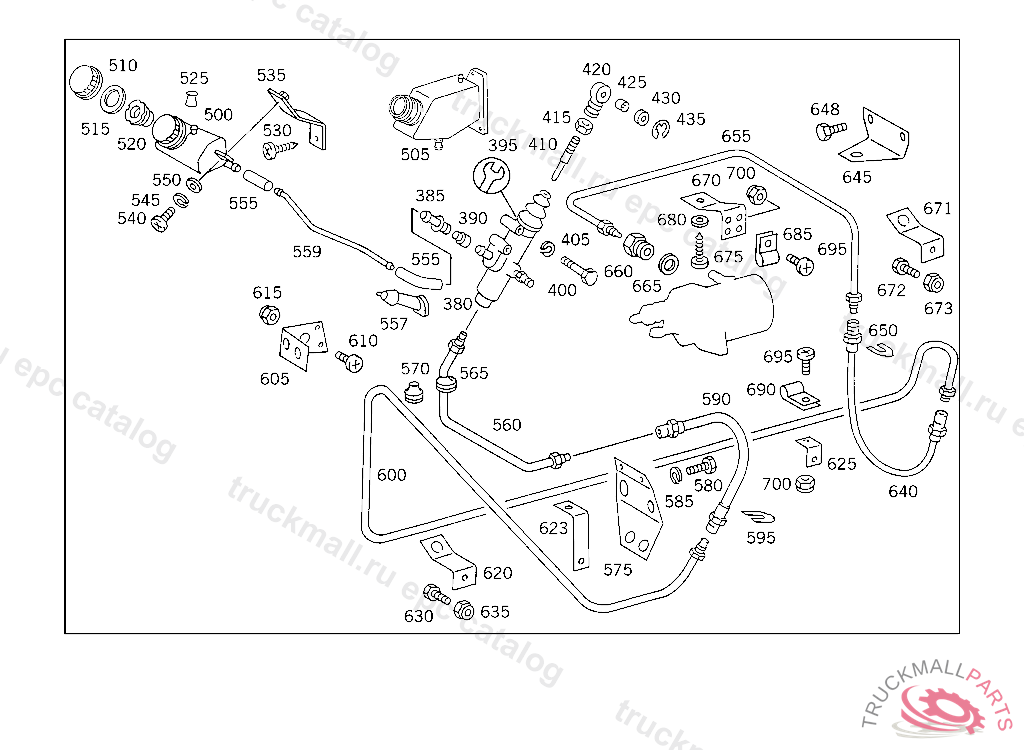

380
MASTER CYLINDER CLUTCH,LESS DE-AERATION
385
INTERMEDIATE PIECE CLUTCH MASTER CYLINDER
390
PLUG
395
REPAIR KIT MASTER CYLINDER
400
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X60
400
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
405
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
410
ROD MASTER CYLINDER
415
NUT
415
NUT , Replaced By: N304035008001
420
ARTICULATION PIECE CLUTCH MASTER CYLINDER
420
ARTICULATION PIECE CLUTCH MASTER CYLINDER
425
NEEDLE BEARING JOINT TO PIN
425
NEEDLE BEARING JOINT TO PIN
425
NEEDLE BEARING JOINT TO PIN
425
NEEDLE BEARING JOINT TO PIN
430
WASHER BRACKET TO CROSS MEMBER
435
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
500
RESERVOIR RESERVOIR
500
RESERVOIR RESERVOIR, 415 5 014669 416 5 000516 417 4 972024
510
LOCKING CAP
515
SEAL RING
520
STRAINER
525
CAP RESERVOIR DE-AERATION
530
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
535
BRACKET RESERVOIR
540
SCREW CLAMP TO BRACKET
540
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
545
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
550
WASHER COMPRESSED AIR LINE TO BRACKET
550
WASHER , Replaced By: N009021006208
555
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
557
GROMMET CLUTCH LINE THRU CAB WINDOW SILL
559
PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR 10X700 MM
560
LINE FROM VALVE TO CONNECTION FITTING,K 172343
560
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
560
LINE , Replaced By: A3812903214
565
GROMMET BATTERY CASE
570
GROMMET TEMPERATURE GAUGE SENDER UNIT
575
BRACKET HYDRAULIC LINE TO CAB FLOOR
580
SCREW PUMP TO BRACKET
580
SCREW , Replaced By: N304017006016
585
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
590
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET
590
HOSE , Replaced By: A3982950035
595
BRACKET. LOCK , Replaced By: A6525040038
595
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
600
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
605
BRACKET AT OIL TANK BRACKET
605
BRACKET AT OIL TANK BRACKET
610
SCREW , Replaced By: N000000001146
610
SCREW CLAMP MOUNTING M 6X16
615
NUT PUMP TO BRACKET
615
NUT , Replaced By: N913004006001
620
BRACKET BRACKET TO FAN SHROUD BRACKET
623
BRACKET SUCTION LINE
625
ANGLE LINE MOUNTING
630
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
630
SCREW , Replaced By: N304017008027
635
NUT , Replaced By: N913004008001
635
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
640
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 350 MM
640
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 215 MM
645
BRACKET AT ENGINE,RIGHT,5 341190
648
SCREWM 16X25
648
SCREW , Replaced By: N304017016011
650
BRACKET. LOCK , Replaced By: A6525040038
650
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
655
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
655
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
660
FITTING CLUTCH BOOSTER
665
SEAL RINGTO 000 553 03 05,000 553 18 05,
670
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
675
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
680
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
685
CLAMP LINE MOUNTING
690
CLAMP ,K 147121, Replaced By: N000000000319
690
CLAMP , Replaced By: N916016008200
690
CLAMP , Replaced By: A3604300143
695
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
695
SCREW CLAMP TO BRACKET
700
NUT PUMP TO BRACKET
700
NUT , Replaced By: N913004006001
999
CLUTCH BOOSTER. REPAIR KIT CLUTCH SLAVE CYLINDER KONGSBERG
999
BOOTKONGSBERG
999
BOOTKONGSBERG
999
BRACKET AT SIDE MEMBER
999
BRACKET AT LEFT SIDE MEMBER
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
