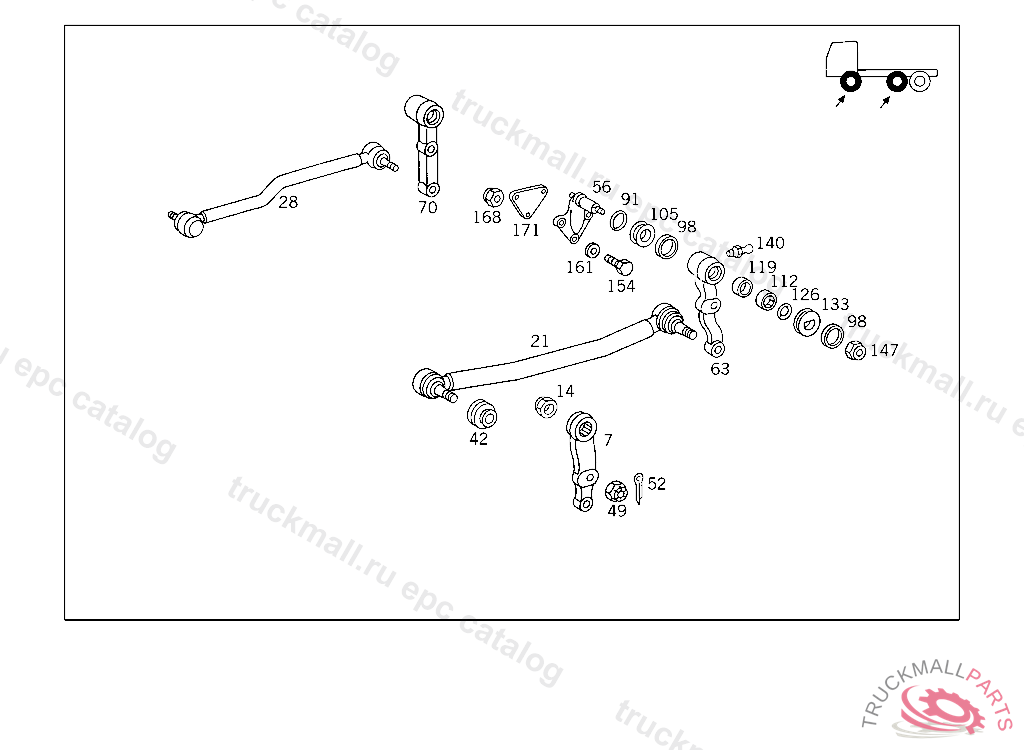

Поз.
Артикул
Описание
7
PITMAN ARM FRONT
7
PITMAN ARM
7
PITMAN ARM FRONT
7
PITMAN ARM FRONT
14
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
21
DRAG LINK FROM PITMAN ARM TO STEERING SUPPORT I EHRENREICH
21
DRAG LINK FROM PITMAN ARM TO STEERING SUPPORT I LEMFOERDER
21
DRAG LINK , Replaced By: A3914601905
28
DRAG LINK FROM PITMAN ARM TO STEERING SUPPORT I EHRENREICH
28
DRAG LINK FROM PITMAN ARM TO STEERING SUPPORT I LEMFOERDER
28
DRAG LINK , Replaced By: A6224601105
42
BOOT DRAG LINK
49
NUT DRAG LINK TO LEVER
52
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
56
STEERING SUPPORTI
63
STEERING INTERMEDIATE ARMI
63
STEERING INTERMEDIATE ARM"I"
70
STEERING INTERMEDIATE ARM"I"
91
SEAL RING INSIDE TO 622 463 01 10
98
SEAL RING INSIDE AND OUTSIDE TO 622 463 01 10
105
THRUST WASHER , Replaced By: A6574630162
112
NEEDLE BEARING INSIDE AND OUTSIDE
119
SPACER TUBE INSIDE
126
SEAL RING OUTSIDE TO 622 463 01 10
126
SEAL RING , Replaced By: A0169973648
133
THRUST WASHER , Replaced By: A6574630062
140
GREASE NIPPLE
140
GREASE NIPPLE , Replaced By: N071412008102
147
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
147
NUT , Replaced By: N910113018004
154
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
154
SCREW , Replaced By: N308676016005
154
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
154
SCREW , Replaced By: N308676016007
161
WASHER BRACKET TO FRAME
161
WASHER , Replaced By: N000125017016
168
NUT CONSOLE TO SUPPORT
168
NUT , Replaced By: N910113016001
171
SHIM STEERING SUPPORT TO FRAME
