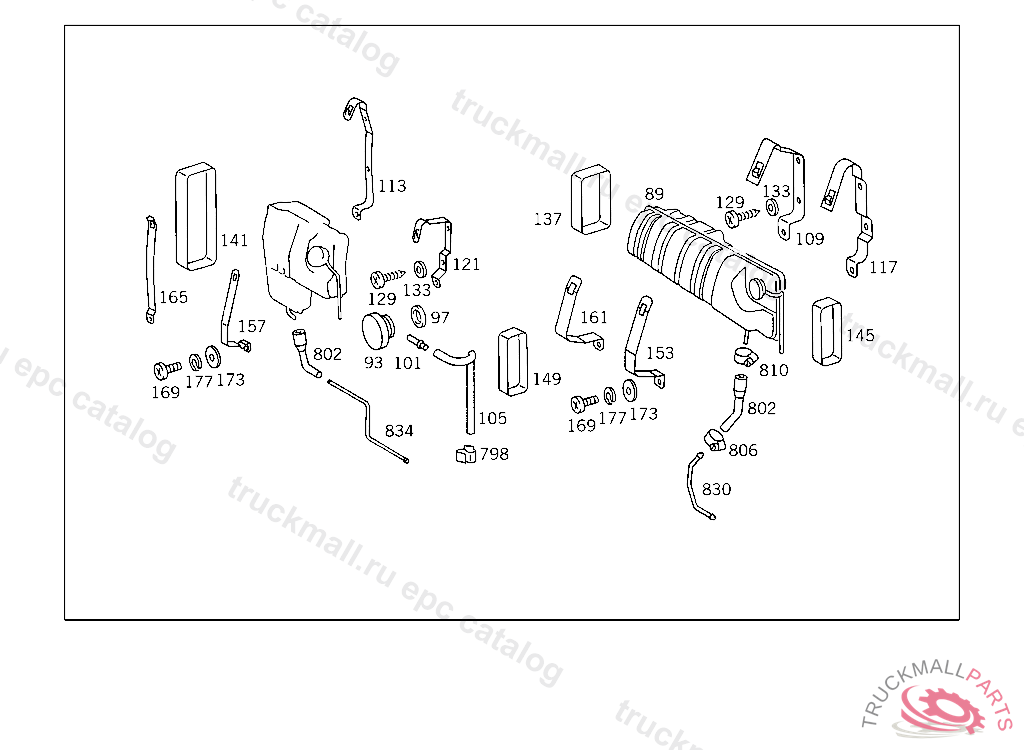

Поз.
Артикул
Описание
89
TANK (EXPANSION TANK)
93
RADIATOR CAP
97
GASKET O.D., 37 MM
101
DRAIN PIPE EXPANSION TANK
101
DRAIN PIPE
105
HOSE OVERFLOW
109
BRACKET EXPANSION TANK
113
BRACKET EXPANSION TANK,RIGHT
117
BRACKET EXPANSION TANK
121
BRACKET EXPANSION TANK,LEFT
129
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
133
WASHER COMPRESSED AIR LINE TO BRACKET
133
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
137
SHIM EXPANSION TANK TO BRACKET
141
SHIM EXPANSION TANK,RIGHT
145
SHIM EXPANSION TANK TO BRACKET
149
SHIM EXPANSION TANK,LEFT
153
STRAP EXPANSION TANK TO BRACKET
157
STRAP EXPANSION TANK,LEFT
161
STRAP EXPANSION TANK TO BRACKET
165
STRAP EXPANSION TANK,RIGHT
169
SCREW CLAMP MOUNTING M 6X16
169
SCREW , Replaced By: N000000001146
173
WASHER , Replaced By: N009021006208
173
WASHER COMPRESSED AIR LINE TO BRACKET
177
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
798
CLIP CABLE HARNESS TO ROOF RAIL
802
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
802
HOSE , Replaced By: A6205012882
806
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
806
CLAMP , Replaced By: N916017011001
810
CLAMP , Replaced By: N000000000667
810
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
830
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
834
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
999
HOSE , Replaced By: A3635060235
999
LOCKING CAP INTERMEDIATE PIPE TO PARTICLE FILTER
999
HOSE FROM FLANGE TO HEATING PIPE
999
HOSE CONNECTION OF COOLING WATER LINES
999
BRACKET PIPE ELBOW
999
LINE FEED
999
BRACKET FEED LINE TO ENGINE
999
COOLING WATER LINE FEED
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW , Replaced By: N304017006016
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
WASHER , Replaced By: N009021006208
999
SCREW PUMP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP , Replaced By: N000000000667
999
RECEPTACLE SILICONE GREASE
999
BRACKET OIL LINE MOUNTING
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
